Burner Fuel Pumps for Hot Water Pressure Washers

When a hot water machine blows cold, the burner fuel pump is one of the first suspects. This collection carries the Suntec and Beckett fuel pumps that run most hot water pressure washer burners, plus the coils, seals, and strainer kits that fix them for a lot less. Tell us your burner make and voltage at 301-519-9274 and we will confirm the right unit and current availability.

How to Pick the Right Burner Fuel Pump

Most diesel-fired pressure washer burners use a gear-driven fuel unit that pulls oil from the tank, filters it through an internal strainer, and pushes it to the nozzle at 100 to 150 PSI so it atomizes into a clean flame. Three things have to match when you replace one: the model family, the rotation and mounting, and the solenoid voltage. The Suntec A2VA-7116 is the workhorse on a huge share of machines, rated around 3 GPH at 3450 RPM. The A2 prefix means two stage, which handles the suction lift most skid and trailer tanks need. Beckett CleanCut PF20 units build the fuel solenoid into the pump body and come in 12V for truck-powered rigs, 120V, and 240V. Match the voltage to your machine's control circuit, not to whatever is on the shelf.

Why the Solenoid Matters

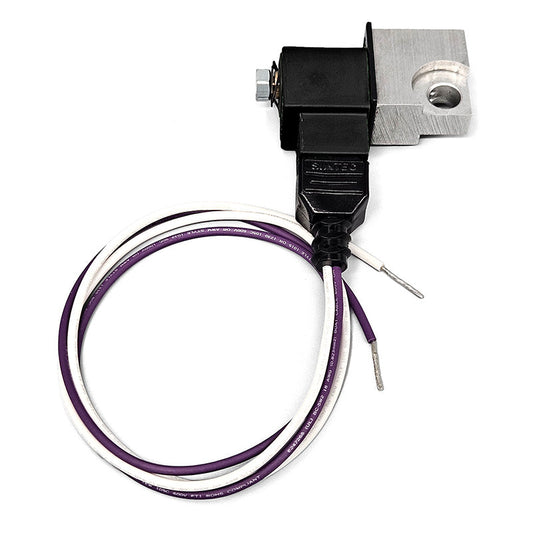

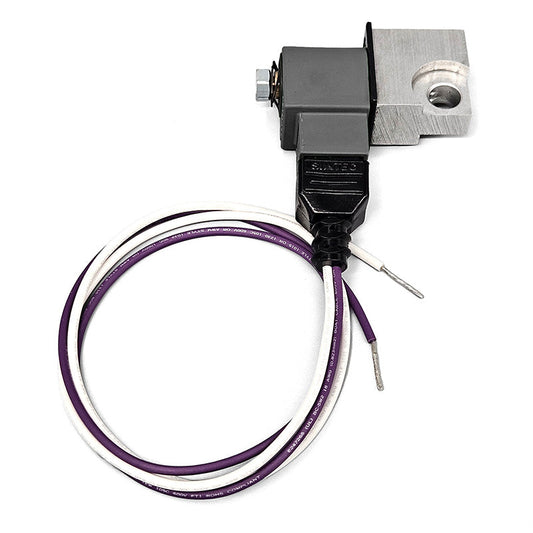

The solenoid valve gives the burner a crisp fuel cutoff the instant the control circuit drops out. Without it, oil keeps dribbling to the nozzle after shutdown, and that after-drip is what causes the smoke puff, sooted coils, and stink customers complain about. If your burner smokes at shutdown, test the solenoid and coil before condemning the whole pump. On Suntec units the coil swaps in minutes, gray for 115V and black for 220V, at a fraction of pump cost.

Fuel Pumps and Service Parts

Burner parts availability changes often, so confirm stock by phone before a scheduled repair.

From the Field

Most fuel pumps we replace did not wear out. They choked on dirty fuel. Water and sludge from the bottom of a diesel tank plug the internal strainer, the pump starves, the flame goes weak and sooty, and eventually the gears score. A $5 strainer and gasket kit once a season, plus a decent inline fuel filter, keeps a $189 pump alive for years. One more counter note: a CleanCut pump and a plain A2VA share a lot of parts but do not behave the same, and even the cover gasket differs. Do not mix service parts between the two families without checking with us first.

Related Collections

• Burner parts for everything downstream of the pump
• Burner nozzles and fuel nozzles for a clean spray pattern
• Fuel filters and fuel tank accessories
• Ignitors, transformers, and thermostats
• Gas valves for LP and natural gas burners
• Hot water pressure washers and hot boxes
• Burner troubleshooting at the counter of our Gaithersburg store

Frequently Asked Questions

My burner will not fire. Is the fuel pump bad?

Check the cheap stuff first. Empty or contaminated fuel, a plugged filter, a clogged pump strainer, or a dead solenoid coil all mimic a failed pump. If the pump gears turn and it still cannot build 100 PSI or better at the nozzle port, then the pump itself is done.

What do the numbers in A2VA-7116 mean?

The A is the frame family, the 2 means two stage gearing for tank suction lift, and the rest codes the rotation, nozzle position, and options. Two pumps with nearly identical numbers can turn opposite directions, so match the full model number or call us with what is stamped on yours.

Can I just replace the solenoid coil instead of the pump?

Often yes. If the pump builds pressure but fuel never reaches the nozzle, or shutoff got lazy, a $32.60 coil in the correct voltage fixes it. Gray coils are 115V and black coils are 220V on Suntec units.

Should my mobile rig use a 12V or 120V fuel pump?

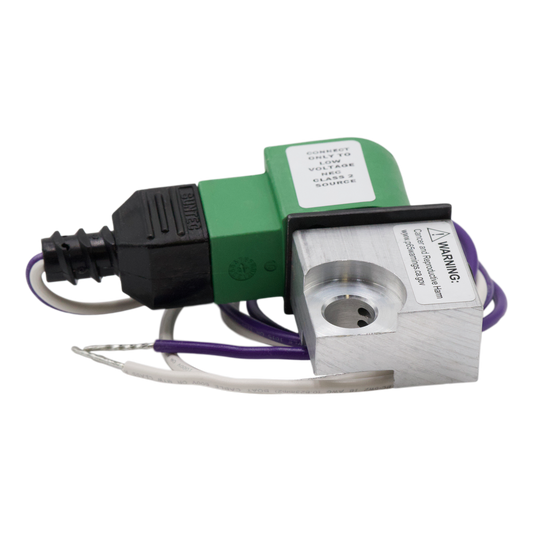

Whatever your burner control system supplies. Trailer rigs that fire the burner off the truck battery need the 12V CleanCut. Machines that plug into shore power or a generator run 120V or 240V units. The wrong voltage either will not open the solenoid or burns the coil out.

Are waste oil burner pumps different?

Yes. Waste oil is thicker and dirtier than heating fuel, so pumps like the Suntec A2RA-7710 use internals built for it. A standard A2VA on waste oil dies fast. Do not swap the two.

How often should the pump strainer be cleaned?

At least once a season on clean diesel, more often if your tank sits or you buy fuel from cans. The strainer and gasket kit costs $4.99. A starved pump and a no-heat service call cost a lot more.
