Steel Pipe Fittings for High Pressure Plumbing

The two dollar fitting is the part that decides whether your five hundred dollar pump holds pressure. Plated steel pipe fittings carry the highest PSI rating per dollar of any material we sell, which is why they live on pump manifolds, unloader loops, and discharge lines everywhere. Need a thread size confirmed? Call 301-519-9274 and read us what is stamped on the part.

When Steel Beats Brass or Stainless

Fitting material is a pressure and chemistry decision. Plated carbon steel handles 4,000 to 5,000 PSI at pocket-change prices, so it is the right call for plain water discharge plumbing, manifold builds, and anywhere pulsing pressure would eventually stretch a softer metal. Brass machines nicely and never rusts, but at high pressure the small sizes give up before steel does. Stainless costs the most and earns it only when chemicals ride in the line. If the fitting will see soft wash mix, salt, or acids, spend up on stainless steel fittings or poly fittings. For hot, high pressure, plain water, steel is the workhorse.

Reading fitting names without a decoder ring

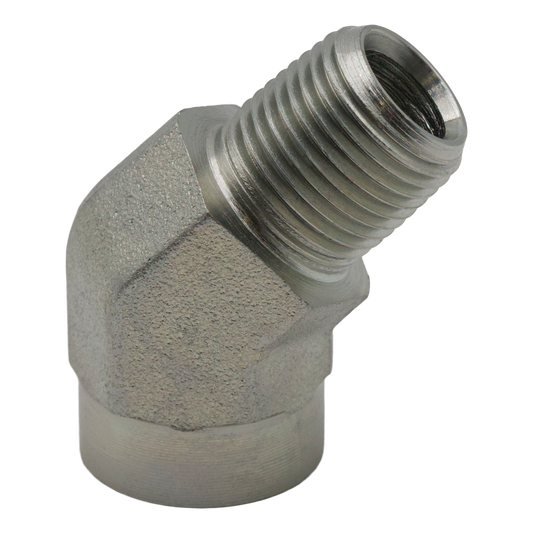

Everything here uses tapered NPT pipe thread. MPT means the threads are on the outside, FPT means they are on the inside. From there the names describe the job. A nipple is male on both ends and joins two female ports. A coupler is female on both ends and joins two males. A street elbow or street tee has one male and one female end, which lets it thread straight into a port without a nipple, saving space and one leak point. A bushing steps a big female port down to a smaller thread. An adapter changes size the other direction. A cross gives you four ports in one body, which is how a gauge, a thermal relief valve, and a discharge line all share one pump outlet.

Where fittings actually fail

Rated pressure is rarely the problem. Fittings fail at the threads, and almost always for one of three reasons. Someone reefed on a tapered thread until the female side split. Someone skipped sealant and let a micro leak cut a channel through the threads, which steel guys call wire drawing. Or vibration backed a dry joint loose over a season. Match the rating to your machine's maximum PSI, seal every tapered joint, and snug rather than strangle. Two turns past hand tight with sealant is usually right.

Thread sealant done right

Use paste or tape on every NPT joint, but keep the first two threads bare. Tape wrapped over the end of the fitting shears off inside the line, and those shreds end up plugged into your quick connect screens and nozzle orifices. Wrap tape clockwise as you look at the open end, three wraps, and it will not unravel as you thread it in. On joints you open often, paste with PTFE is easier to redo.

Steel Fitting Lookup

Check the PSI stamp against your machine before you buy. Most fittings here run 4,000 to 5,000 PSI, and a few bushings and adapters are rated 3,000. Call and we will check the bin before you make the drive.

From the Field

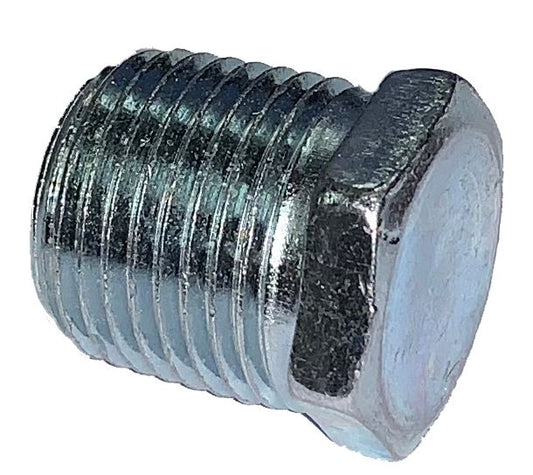

The most common build we help with at the counter is the pump-top manifold: a steel cross on the discharge port carrying a gauge, a thermal relief valve, and the outlet nipple. It costs about $25 in fittings and tells you instantly when pressure sags or heat builds. Second tip, and this one saves Saturday jobs: keep a spare hex plug, a nipple, and a roll of tape in the truck. When a fitting starts weeping rust at the threads, it is telling you the plating is gone and the steel underneath is going. That fitting costs three dollars to replace today and a service call when it lets go mid-job.

Fittings by Shape and Material

• Brass pipe fittings
• Stainless steel pipe fittings
• Polypropylene fittings
• 90 degree elbows and street elbows
• Tees and crosses
• Hex bushings and adapters
• Nipples and close nipples
• Quick connects

Bring the old part to our Gaithersburg pressure washer store and we will match threads at the counter.

Frequently Asked Questions

Are steel pipe fittings strong enough for pressure washers?

Yes. Most of the plated steel fittings in this collection are rated 4,000 to 5,000 PSI, which covers nearly every cold and hot water machine on the road. Always check the stamped rating against your machine's maximum.

Should I buy steel or brass fittings?

Steel for high pressure plain water lines, since it holds more pressure for less money. Brass for lower pressure sections and anywhere corrosion matters more than strength. If chemicals run through the line, use stainless instead of either.

Will plated steel fittings rust?

Not quickly on plain water duty. The plating protects the carbon steel underneath. Salt, acids, and soft wash chemicals strip that protection, and rust weeping from the threads means the fitting is due for replacement.

What does street mean on an elbow or tee?

One end is male and the other is female. A street fitting threads directly into a port with no nipple in between, which saves space on crowded pump heads and removes one potential leak point.

Do I use tape or paste on steel fittings?

Either works on NPT threads. Keep the first two threads bare so nothing shears off into the water stream, because tape shreds are a classic cause of plugged nozzles and stuck quick connect screens.

What thread size is my pressure washer plumbing?

Most gas machines run 3/8" NPT on the discharge side and 1/4" NPT at the gun and lance. Pump ports vary by brand. If you are not sure, read us the pump model over the phone and we will look it up.
