Pressure Washer Gun and Lance Combos

A sticky trigger or a lance that whips at full pressure slows a crew down faster than most pump problems. This collection pairs pressure washer guns with matched lances rated up to 5,000 PSI and 320 degrees F, so the threads line up and the ratings agree out of the box. Not sure what fits your machine? Call 301-519-9274 with your PSI, GPM, and hose end and we will match a combo before you order.

How to Match a Gun and Lance Combo to Your Machine

Every combo carries three ratings: pressure, flow, and temperature. Each one must meet or beat what your machine puts out. A 4 GPM machine running 4,000 PSI needs a gun rated at least 4,000 PSI, and stepping up to a 5,000 PSI gun costs a few dollars more while adding a safety margin that pays for itself the first time an unloader spikes. Temperature is the rating most people skip. Cold water guns are built for about 140 degrees F. Hot water machines need guns and lances rated 250 to 300 degrees, and true steam work calls for a dedicated steam lance built from schedule 80 pipe.

Trigger Gun or Dump Gun

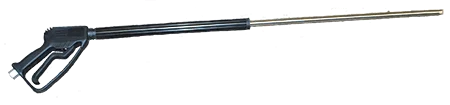

A trigger gun stops flow when you release the trigger, which forces the machine into bypass. That is fine on cold water rigs. A dump gun works differently. Release the trigger and water diverts out a dump port at low pressure instead of dead-heading against a closed valve. Hot water and steam operators run dump guns like the RLW40 with 40 inch stainless wand because trapping 300 degree water behind a shut valve cooks seals and turns the gun into a burn hazard. If your burner runs every day, a dump gun is cheap insurance.

Get the Threads Right

Most American-built machines use a 3/8 inch FPT gun inlet and a 1/4 inch FPT outlet, usually dressed with quick connects. Imported and Karcher-style machines use M22 threads, which the industry calls 22mm. The two do not mix without adapters, and every adapter is one more place to leak. We stock the same gun both ways for exactly this reason. The Mecline MV2009 comes with a 3/8 FPT inlet or with 22mm on both ends. Check your hose end before you buy and the install takes five minutes.

Lance Length and Style

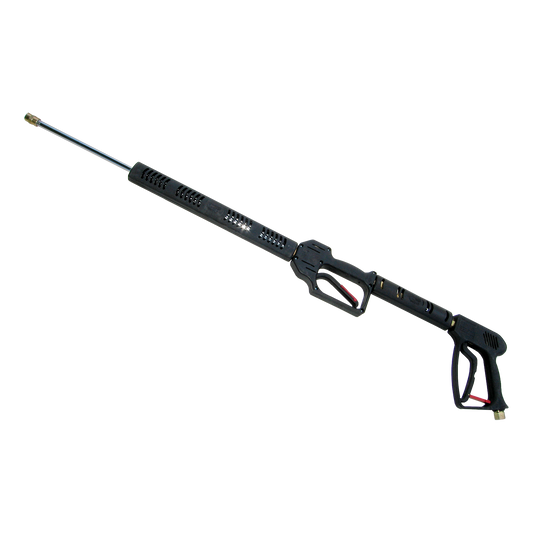

A 24 inch lance is the standard all-around length. Move up to 36 or 46 inches for flatwork and fleet washing, since the extra reach saves your lower back and keeps hot spray farther from your hands. Dual lances put a second barrel and a side handle on the gun so you can twist a grip and drop to low pressure for soap without swapping nozzles. Telescoping wands reach second-story fascia from the ground. Steam lances are their own category, heavy schedule 80 pipe with an insulated handle, and nothing else should be substituted for them on a steam machine.

Combo Comparison

Prices change and availability moves fast on combos. Call before you drive if you need one today.

From the Field

We sell a $37 repair kit for RLW40 dump guns for a reason. Guns do not usually die all at once. The valve seat wears, the gun starts weeping at the nozzle after you let off the trigger, and operators live with the drip until the pump starts cycling in and out of bypass all day. That cycling kills unloaders and packings that cost far more than the gun. Fix the drip the week it starts. Two more counter tips: never hang the gun by its trigger on the rack, and put a dab of grease on the lance o-ring every few weeks. A dry o-ring is behind half the coupler leaks we see.

Related Collections

• Pressure washer guns sold on their own
• Lances and wands and dual lances
• Lances for hot water and steam guns
• Gun and hose kits
• Wand accessories
• Quick connects and nozzles
• Suttner gun repair kits

Local to Montgomery County? Stop by our Gaithersburg pressure washer store and test the trigger feel in person.

Frequently Asked Questions

What PSI rating does my spray gun need?

At least the maximum pressure your machine produces, and buying one step higher is smart. A 4,000 PSI machine should run a gun rated 4,000 PSI or more, since pressure spikes from a sticking unloader can pass the rated number.

What is the difference between a trigger gun and a dump gun?

A trigger gun shuts off flow when released and sends the machine into bypass. A dump gun diverts water out a dump port at low pressure instead. Dump guns are the safer choice on hot water and steam machines because they never trap scalding water behind a closed valve.

Will a 22mm gun fit my American-made pressure washer?

Not directly. Most US machines use 3/8 inch FPT connections while 22mm is the metric standard on imported machines. Adapters exist, but matching the thread style from the start means fewer leak points.

Can I use a cold water gun on a hot water machine?

No. Cold water guns are rated around 140 degrees F and hot water softens their seals fast. Use a gun and lance rated 250 to 300 degrees on a hot machine and a schedule 80 steam lance for steam.

Why does my gun drip after I release the trigger?

The valve seat is worn. The gun still works, but the leak makes the unloader cycle constantly, which wears out parts that cost more than the gun. A repair kit or a new combo fixes it.

How long should my lance be?

24 inches covers general work. Go 36 to 46 inches for driveways, decks, and trucks so you stand upright while you clean. Short 16 to 18 inch wands are easier to control for detail work and tight spots.

Do combos come ready to spray?

You will still need a nozzle and, on most setups, quick connect fittings for your hose. Tell us what machine you run when you call 301-519-9274 and we will make sure the box arrives with everything the job needs.
