Pressure Washer Gauges

You cannot fix what you cannot measure. A gauge turns arguments about weak pressure into a number, and the number tells you if the problem is the nozzle, the unloader, or the pump. Sun Brite Supply carries panel gauges, inline test gauges, and burner fuel pressure gauges. Questions about which one reads your problem? Call 301-519-9274.

How to Pick a Pressure Gauge

Two rules cover most of it. First, buy a scale where your normal operating pressure lands near the middle of the dial. A gauge is most accurate mid scale, and a needle pinned near the top has no headroom for spikes. For a 4,000 PSI machine that means a 5,000 PSI or higher scale, not a 4,000. Second, for anything that lives on a running machine, choose a stainless case and glycerin filled dial. The fluid damps needle flutter from pump pulsation, and stainless shrugs off the wet, chemical heavy air around a wash rig.

Using a Test Gauge to Diagnose Pressure Loss

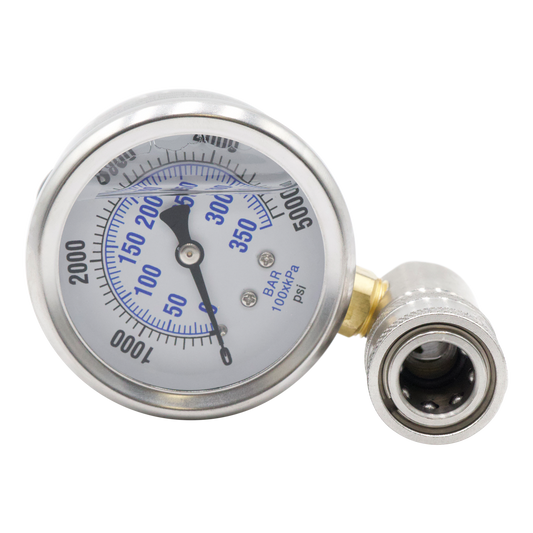

An inline test gauge with quick connects is the single most useful diagnostic tool a washer owner can own. Snap it between the hose and the gun, run the machine with your normal nozzle, and read it. Pressure at spec means the machine is fine and your nozzle choice or technique is the issue. A low reading with a fresh nozzle points upstream to the unloader or pump. A reading that keeps climbing after you release the trigger means the unloader is creeping and needs adjustment before something lets go. A needle that shakes violently even on a damped gauge usually means the pump is sucking air or a check valve is fouled. Ten minutes with a gauge saves you from replacing parts on a guess.

Fuel Pressure on Hot Water Machines

Hot water skids and trailers have a second pressure that matters: fuel pressure at the burner pump. When a burner smokes, pulses, or will not fire, clip a fuel pressure test gauge on the pump port and check it against the burner plate, typically in the 100 to 145 PSI neighborhood depending on the unit. Low fuel pressure mimics a dozen other burner problems, so measure it before you start swapping burner parts.

Gauge Lineup

From the Field

The gauges that come back to our counter dead all died the same way: bolted to a vibrating frame and left there for a year. Pulsation beats the movement apart from the inside. So treat gauges as two different tools. The test gauge with quick connects lives in the truck toolbox and touches the machine only when something needs measuring, which is why it lasts for years. A permanently mounted gauge should hang on a panel with a back mount ring, glycerin filled, and you should still expect to replace it eventually. One more tip from the bench: always test with a nozzle installed. Pressure is created at the orifice, so a gauge read with no nozzle tells you almost nothing. A slow slide in readings over weeks with the same nozzle is the nozzle wearing out, and a worn nozzle is a $10 fix for a 300 PSI complaint.

Related Collections

• Unloader valves, the usual suspect behind bad readings
• Nozzles and quick connect tips
• Thermal relief valves
• Pressure relief valves and safety relief valves
• Burner parts for hot water machines
• Maintenance hour meters
• Quick connects and pump accessories

Prefer to test before you buy parts? Bring the machine to our Gaithersburg shop and we will put a gauge on it.

Frequently Asked Questions

How do I check the actual PSI of my pressure washer?

Connect an inline test gauge between the high pressure hose and the gun, install your normal nozzle, and run the machine with the trigger pulled. Read the gauge at steady state. That number is your true working pressure.

What gauge range should I buy for a 4,000 PSI machine?

A 0-5000 PSI scale or higher. Gauges read best in the middle of the dial, and you want headroom above your working pressure for spikes when the trigger closes.

Why does my gauge needle bounce around?

Some flutter is normal pump pulsation, and a glycerin filled gauge smooths most of it. Wild swinging on a damped gauge points at air in the inlet, a fouled check valve, or cavitation, and those need attention.

My machine reads low pressure. What do I check first?

The nozzle. Orifices wear open and pressure falls gradually. If a new nozzle of the correct size does not bring the number back, move on to the unloader, then the pump valves and packings.

What is a fuel pressure gauge used for on a pressure washer?

Hot water machines meter diesel or kerosene through a burner fuel pump at a set pressure. A 0-300 PSI fuel gauge confirms the pump is delivering spec pressure before you blame the nozzle, coil, or electrodes.

Can I leave a gauge mounted on the machine permanently?

You can, but vibration will eventually kill it. Panel mount it with a back mount ring, use a glycerin filled model, and treat it as a wear item. Keep a quick connect test gauge in the toolbox for real diagnostics.
