Hex Couplers for High Pressure Plumbing

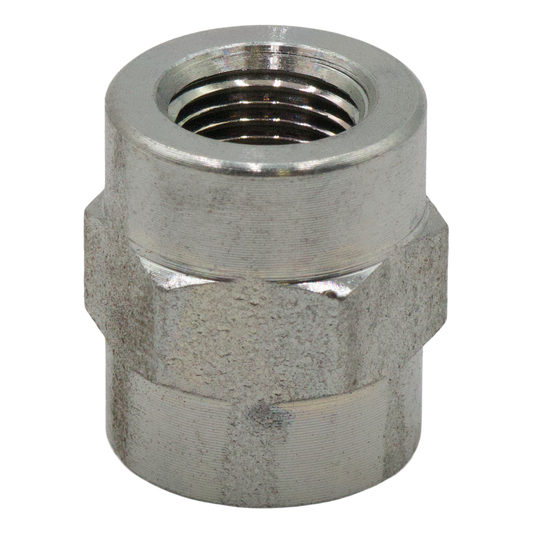

Two male threads cannot join each other, and that is the whole reason hex couplers exist. Each end of the coupler is a female NPT thread, so it ties two nipples, valves, or gauge stems together in one wrench-tight joint. Sun Brite Supply keeps steel hex couplers in 1/8 through 1/2 inch sizes at our Gaithersburg counter. Not sure which threads you have? Call 301-519-9274 and describe the parts, or bring them in.

How to Size a Hex Coupler

NPT sizes describe the pipe, not the visible thread, which trips people up. A 1/4 inch NPT thread actually measures about 1/2 inch across the outside. If you are unsure, thread the male part into a known fitting at the counter or measure the outer diameter and subtract about a quarter inch to land near the nominal size. Pressure washer plumbing runs mostly on three sizes. Gun and lance connections use 1/4 inch, high pressure hose and pump manifolds use 3/8 inch, and larger machine plumbing steps up to 1/2 inch. A straight coupler joins two males of the same size. A reducing coupler, such as a 1/2 by 1/4, lets you hang a small gauge or nozzle holder off larger plumbing without a stack of adapters.

Steel, brass, or stainless

Plated steel is the default for high pressure work. It carries up to 5,000 PSI in the smaller sizes and costs a few dollars. The zinc plating fights rust, but once it wears through in a wet chemical environment the fitting will brown up, so inspect couplers when you service the machine. Brass is friendlier to soft wash and low pressure chemical lines and never rusts, though it gives up strength. Stainless costs the most and shrugs off both pressure and chemicals. For a downstream injector line or a bleach-heavy rig, spend up on stainless fittings. For everything else, steel does the job.

Seal the threads right

NPT threads are tapered and they seal on the thread flanks, not on a gasket. Wrap two or three turns of PTFE tape in the direction of the thread, starting one thread back from the end. Tape hanging over the opening tears off inside the line and ends up plugging a nozzle or an unloader seat. Thread sealant paste works too and holds up better on joints you break down often. Snug the joint with two wrenches, one on the hex and one on the mating part, so you are not twisting the rest of the plumbing.

Coupler Size Chart

Fittings are counter stock and quantities swing daily, so call ahead if you need a handful for a build.

From the Field

The five dollar fitting is never the expensive part. The expensive part is the return trip. When a customer builds out a manifold, we tell them to buy one spare coupler per size on the cart. Cross-threaded steel is not worth rescuing at this price, and a stripped joint found at 7 am on a job site costs an hour of billable washing. One more habit: when a coupler joint weeps after tightening, take it apart and look at the male threads. A hairline split in the mating nipple mimics a bad seal, and no amount of tape fixes cracked steel.

Related Fittings and Plumbing

• Pressure washer hose fittings and all fittings
• Hex nipples for the opposite job, male on both ends
• Hex bushings for reducing a female port
• Quick connects and hose barbs
• Brass pipe fittings and steel pipe fittings
• Ball valves for shutoffs in the same line
• Pick up same day at our Gaithersburg, MD store

Frequently Asked Questions

What is the difference between a hex coupler and a hex nipple?

A hex coupler is female on both ends and joins two male fittings. A hex nipple is male on both ends and joins two female ports. They are mirror images of the same job.

Do I need thread tape on a hex coupler?

Yes. NPT threads seal metal to metal and need PTFE tape or paste sealant to fill the spiral leak path. Start the tape one thread back so scraps cannot wash into your gun or nozzle.

Will a garden hose thread into an NPT coupler?

No. Garden hose thread is a different form and pitch, and it seals on a washer instead of the threads. Forcing it ruins both parts. Use a garden hose coupling or a proper GHT to NPT adapter.

What pressure are steel hex couplers rated for?

It depends on size. Our 1/8 and 1/4 inch steel couplers carry 5,000 PSI, the 3/8 inch runs 4,000, and the 1/2 inch sizes carry 3,000. The weakest fitting in the joint sets the limit for the whole line, so check every part.

When should I use a reducing coupler?

Any time you need to step between sizes in one piece, like tying a 1/4 inch gauge or injector into 1/2 inch plumbing. One reducing coupler replaces a coupler plus a bushing and gives you one less joint to leak.
