Collection: Packing Extraction Kit
Packing Extraction Kit
-

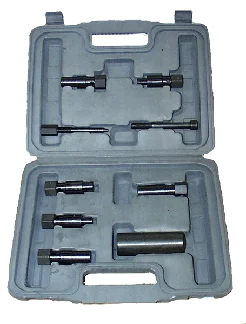

Gp Packing Extractor Kit
Regular price $180.67Regular priceper
Packing Extraction Kits for Triplex Pump Repair
New packings cost about forty dollars. A new pump costs five hundred and up. The packing extraction kit is the tool that lets you spend forty instead of five hundred, because it pulls worn packings out of the manifold without chewing up the brass around them. The complete General Pump kit is on our shelf, and if you are mid-repair and stuck, call 301-519-9274.
Why You Need a Packing Extractor and Not a Screwdriver
Packings sit deep in the manifold bores, and they get tight after a few hundred hours of heat and pressure. The tempting move is to dig them out with a pick or a bent screwdriver. The problem is what you scratch on the way. Those bores are machined brass, and the packing seals against them. One gouge in the wrong spot and the new packings leak from day one, which turns a forty dollar seal job into a manifold replacement that costs more than some pumps.
The extractor works differently. The socket threads into the body of the old packing, a slide hammer attaches to the socket, and a few sharp pulls walk the packing straight out of the bore. No prying, no side load, no contact with the sealing surface. The old packing is trash anyway, so grabbing it by force costs nothing.
Match the Socket to Your Plunger Size
Extractor sockets are sized to the pump's plunger diameter, and triplex pumps run anywhere from 13mm to 24mm plungers depending on model. Your pump's parts breakdown lists the plunger size, and the packing kit for your pump will state it too. Buy the single socket that matches your pump if you only ever service one model. Buy the full kit if you run mixed equipment or fix pumps for other people, because it covers every size from 13mm to 24mm with the slide hammer and case included.
Kit and Socket Options
| Item | Covers | Price |
|---|---|---|

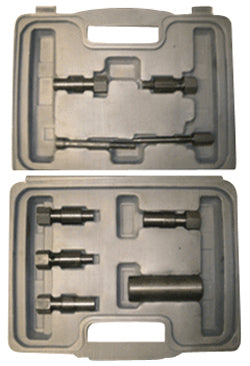

| GP Packing Extractor Kit, complete | Slide hammer plus all sockets, 13mm to 24mm, in a case | $180.67 |
| 13mm socket only | Small-plunger pumps | $11.12 |
| 15mm socket only | 15mm plunger pumps | $11.48 |
| 16mm socket only | 16mm plunger pumps | $11.48 |
| 18mm socket only | Mid-frame triplex pumps | $11.48 |
| 20mm socket only | 20mm plunger pumps | $11.48 |
| 22mm socket only | Large-frame pumps | $11.48 |
| 24mm socket only | 24mm plunger pumps | $11.48 |
| Replacement carry case | Keeps the set together on the truck | $9.88 |
Individual sockets move in and out of stock, so call ahead if you need one size today.
From the Field
A few habits that separate clean packing jobs from repeat ones. Do all three cylinders while the head is off, even if only one is leaking, because the other two are the same age and you do not want the head off twice. Keep one old packing until the job is done, since it confirms the size if there is any doubt about the parts diagram. Inspect every plunger while you are in there, because a scored or cracked ceramic plunger will eat new packings in a week and the extraction kit cannot fix that. And before any of this, confirm the diagnosis: pressure dropping while the machine pulses, or pump oil turning milky, points to packings. Oil weeping at the crankcase points to oil seals, which are a different repair.
Related Pump Repair Collections
- General Pump parts
- CAT pump parts
- AR pump parts
- Comet pump parts
- Giant pump parts
- Udor pump parts
- Pump oils
- Gasket kits
- Replacement pressure washer pumps
- Repair help in person at our Gaithersburg store
Frequently Asked Questions
Can I remove pump packings without an extractor tool?
People try with picks and screwdrivers, and some get away with it. The risk is scratching the machined bore the packing seals against. Score that surface and new packings will not hold pressure, which can total the manifold. The tool exists because the gamble is not worth it.
What size packing extractor socket do I need?
The socket matches your pump's plunger diameter, somewhere from 13mm to 24mm on common triplex pumps. Your parts breakdown lists it, or call us with the pump model number and we will look it up.
How do I know my packings are worn?
Falling pressure with a pulsing wand, water dripping from the underside of the manifold, or milky pump oil from water sneaking past the seals. Any of those on a pump with hours on it usually means packing time.
Should I replace packings on all three cylinders at once?
Yes. They wear together, and the labor is in getting the head off, not in the packings themselves. Doing one cylinder now almost guarantees doing the other two within the season.
Does the GP extractor kit work on other pump brands?
It is built by General Pump, but the sockets fit by plunger diameter, not by brand. If your CAT, AR, or Comet pump runs a plunger size the kit covers, the matching socket will pull its packings.
What else do I need for a full packing job?
The packing kit for your pump model, fresh pump oil since you should change it while the pump is apart, and a tube of silicone grease for seating the new packings. Have the gasket kit on hand in case the head gaskets do not survive removal.
