Gearbox and Gear Reduction Drives

A pump turning 1,500 RPM lasts years longer than one screaming along at 3,400. A gear reduction drive gets you that slower pump speed in a sealed housing that bolts between the engine and pump, no belts, no pulleys, no rails. Building a rig around an 11 to 24 HP engine? Call 301-519-9274 and we will confirm the gearbox, pump, and shaft fit together before you buy any of it.

Choosing a Gear Reducer for Your Pump

Every unit here uses a 2.2 to 1 ratio. Your engine spins at roughly 3,400 RPM, the gearbox cuts that to about 1,540 at the pump shaft. That is the same neighborhood belt drive pumps run at, and it is why both setups routinely outlast direct drive pumps by a wide margin. Slower strokes mean less heat in the packings and less pounding on the valves.

Gear drive beats belt drive on three points. It is compact, so it fits skids and trailers where a belt frame will not. It is sealed, so road grit and wash water never touch the drive. And there is no belt to tension, dress, or throw mid-job. The tradeoffs are real too. A gearbox costs more up front, and when one finally gives up you replace it rather than rebuild it on the tailgate. A belt is a $20 roadside fix. A gearbox is not.

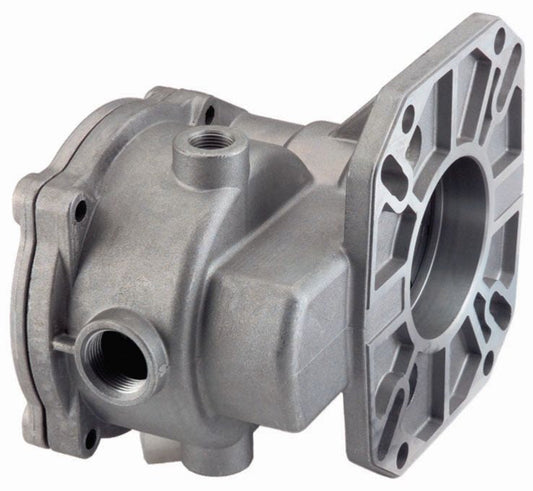

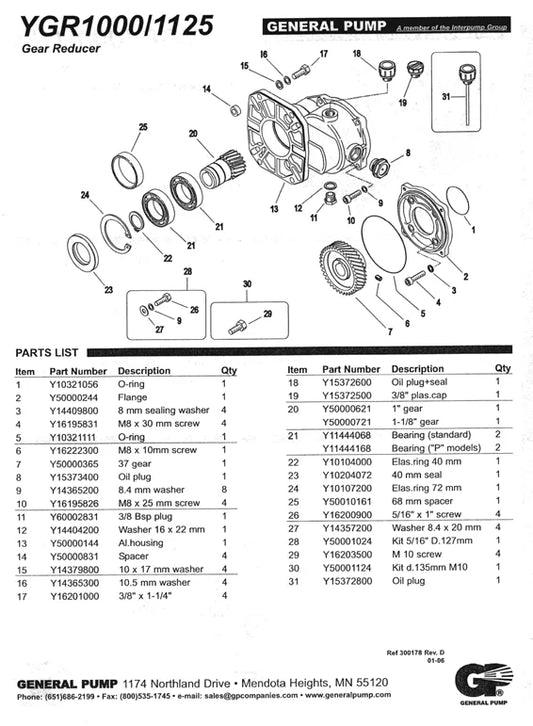

Fitment comes down to three checks. Engine shaft size, and these fit a 1" shaft. Engine horsepower, since the YGR1000 handles 11 to 18 HP while the YGR1000P is rated to 24 HP. And the pump side, where the pump's bolt pattern and shaft bore have to match the gearbox output. One phone call with your engine and pump model numbers settles all three.

Call for current availability and lead times before you schedule the build.

Related Collections

• Pressure washer pumps and pumps made ready
• AR pumps and AR pump parts
• Udor pumps and General pumps
• Pulleys and sheaves for belt drive builds
• Pump oil and pump accessories
• Unloader valves
• Build help in person at our Gaithersburg, MD store

Frequently Asked Questions

What does a 2.2 to 1 gear reduction actually do?

It cuts pump shaft speed from engine speed, about 3,400 RPM, down to roughly 1,540 RPM. The pump moves the same water but with slower, easier strokes, which keeps heat out of the seals and stretches pump life by years in daily use.

Gear drive or belt drive, which should I build?

Both get the pump to a healthy speed. Pick gear drive when space is tight, the rig lives in dirt and spray, or you never want to touch a belt again. Pick belt drive when you want the cheapest possible field repair and easy pump swaps.

Does a gearbox change my PSI or GPM?

No. Pressure and flow come from the pump. The gearbox only sets the speed the pump turns, so the pump you pair with it must be rated for 1,450 to 1,550 RPM operation.

What maintenance does a gear reducer need?

Very little, which is the point. Check the gear oil level on schedule, change it per the manual, and watch for seepage at the seals. Grinding noise or a hot case means stop and call before it takes the pump shaft with it.
