The number one reason a downstream soap setup will not pull chemical is an injector that does not match the machine. Chemical injectors are sized by your pressure washer's flow in gallons per minute (GPM), not by pressure and not by the chemical you spray. Get the size right and your injector draws a steady mix all day. Get it wrong and you fight weak soap, low pressure, or no draw at all.
This guide covers how a downstream injector works, how to pick the right orifice size, and what to check when draw drops off. If you already know your GPM, jump straight to our chemical injectors collection.
How a Downstream Chemical Injector Works
A downstream injector is plumbed after the pump and unloader, so chemical enters the water stream on the way to the gun. Inside the injector is a small orifice. When water rushes through that orifice, it creates a vacuum (the venturi effect), and the vacuum pulls chemical up through the draw hose from your bucket.
The catch is that the vacuum only forms when pressure drops at the gun. With a high pressure nozzle on, the line stays at full pressure and the injector stays shut. Switch to a low pressure soap tip, a dual lance, or an adjustable nozzle, and pressure falls, the vacuum forms, and the injector starts pulling. That is what lets you soap and rinse from the same hose without touching the injector.
Because chemical enters after the pump, soaps, degreasers, and soft wash mix never touch your pump seals, valves, or unloader. That is the main reason most contractors run downstream instead of drawing chemical through the pump.
Why Size Matters
The orifice is a restriction in your line. Match it to the water flowing through it and it creates just enough vacuum to draw. Mismatch it and things go wrong fast:
- Orifice too small for the machine: it chokes the flow. You lose pressure at the gun, the unloader works harder, and the pump runs hot.
- Orifice too large for the machine: not enough velocity to build a vacuum. The injector barely draws, or does not draw at all.
Pressure (PSI) does not decide the size. A 3,000 PSI machine and a 4,000 PSI machine that both flow 4 GPM take the same injector.
Chemical Injector Sizing Chart
Find your machine's GPM on the data plate or pump label, then pick the matching orifice. Each size below links straight to that option on our adjustable injector page.
| Machine Flow | Orifice | Typical Machine | Shop This Size |
| 1.0 to 2.0 GPM | 1.5 mm | Small electric and light duty units | 1.5mm PA Adjustable Injector (3140) |
| 2 to 3 GPM | 1.8 mm | Smaller gas machines and trailer setups | 1.8mm PA Adjustable Injector (2209) |
| 3 to 5 GPM | 2.1 mm | The typical 4 GPM contractor rig | 2.1mm PA Adjustable Injector (2210) |
| 5 to 8 GPM | 2.3 mm | High flow production and house wash machines | 2.3mm PA Adjustable Injector (2211) |
If your machine sits right on a boundary, like exactly 3 GPM or 5 GPM, go with the size whose range your machine lands in the middle of once you account for pump wear. Older pumps usually flow a little less than the data plate says.
Fixed vs Adjustable Injectors
A fixed injector pulls one rate, and that is it. It is simple and cheap, and it works fine if you run one chemical at one strength every day.

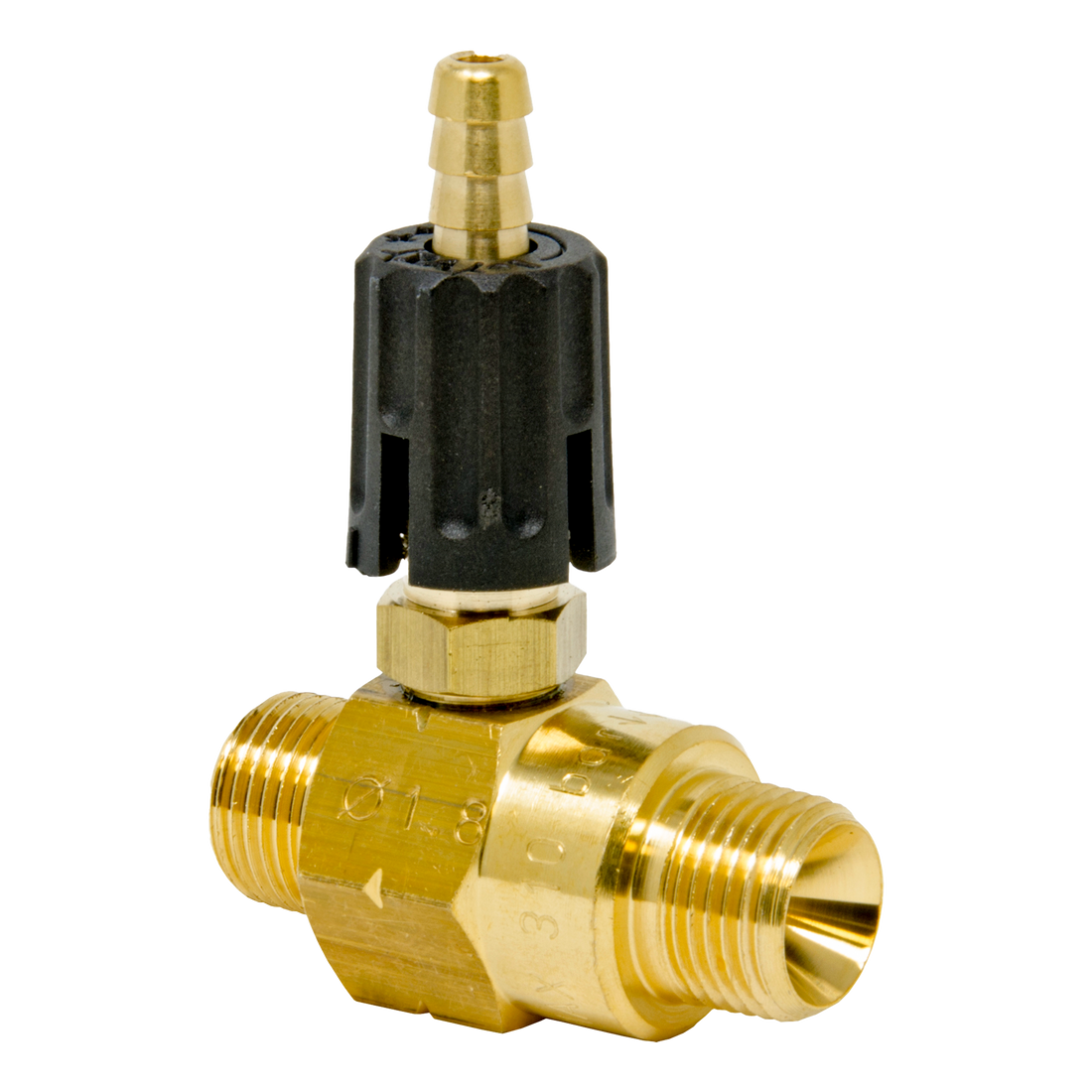

A PA adjustable chemical injector has a collar that lets you set how much it pulls. Most crews that do house washing, soft washing, and flatwork in the same day end up preferring adjustable, because you can go from a rich mix on a mildew-heavy wall to a light coat on trim without swapping parts on the tailgate. The adjustment changes chemical draw only. It does not change the water flow through the line, so your orifice size still has to match the machine.
Acid Needs a Different Injector
Standard injectors use o-rings that swell and fail in acid. If you run acid for rust, efflorescence, or brightening, use an acid injector with Viton o-rings and keep it separate from your soap injector. Browse the chemical injectors collection for acid-rated options.
Installation Tips That Save Headaches
- Follow the arrow: the flow arrow on the injector points toward the gun.
- Mount it close: plumb it after the unloader and before the hose reel when you can. A very long run of hose past the injector cuts draw.
- Seal the threads: use PTFE tape or pipe sealant, and snug brass fittings without cranking on them.
- Stop air leaks: clamp the chemical line tight on the barb. An air leak kills the vacuum.
- Strain the draw: put a strainer on the end of the chemical hose so bucket grit never reaches the check ball.
Troubleshooting: Injector Not Drawing
Work through these in order. The cheap fixes are also the most common ones.
- Wrong nozzle: the injector only draws with a low pressure soap tip on. This is the cause most of the time.
- Clogged strainer: pull it out of the bucket and clean it.
- Stuck check ball: grit or dried bleach can hold it open or shut. Flush the injector with clean water.
- Air leak: check the barb, the clamp, and the chemical hose for cracks.
- Worn o-rings: hard or flattened o-rings let the injector lose vacuum.
- Bucket too low: raise the chemical container so the injector is not lifting too far.
- Wrong size: if none of the above fixes it, recheck your machine's GPM against the sizing chart.
At the end of each day, run clean water through the injector, especially after sodium hypochlorite. Bleach crystallizes as it dries, and that buildup is what slowly weakens draw over a season.
Get the Right Injector the First Time
Sun Brite Supply stocks PA adjustable chemical injectors in all four sizes, plus strainers, chemical hose, and soap and foam tips to complete the draw side of your rig. Most orders ship the same business day when placed before 2 PM Eastern, and local contractors can pick up at 16620 Oakmont Ave, Gaithersburg, MD 20877.
Not sure what your machine flows? Call 301-519-9274 and we will help you size it before you order. Or shop the full chemical injectors collection at sunbritesupplymd.com.
