This PA adjustable chemical injector lets you dial your soap draw up or down right at the rig, and it comes in four orifice sizes so you can match it to any machine from 1 GPM to 8 GPM. It runs downstream, so soap and soft wash mix never pass through your pump. In stock and ships same day from Sun Brite Supply in Gaithersburg, Maryland.
Product Overview
The PA adjustable injector earns its keep when the jobs change through the day. Run a rich mix on a dirty north-facing wall, then back it off for a light pass on trim, all without pulling anything out of the line. A fixed injector makes you live with one draw rate or swap parts on the tailgate. Crews running several different chemicals in a day get the most out of it.
The orifice size is the number that matters. Injectors are sized by the flow of the machine, not by the chemical you spray. Pick the size that matches your machine's GPM from the options above: 1.5mm for 1.0 to 2.0 GPM, 1.8mm for 2 to 3 GPM, 2.1mm for 3 to 5 GPM, and 2.3mm for 5 to 8 GPM. Too small and it restricts flow and drops pressure. Too large and it will barely draw.
It works on the downstream principle. The injector sits after the pump and unloader and only pulls chemical when pressure drops at the gun. Put a low pressure soap tip on and it draws. Switch to a high pressure tip and the draw stops. Your pump, unloader, and hose reel only ever see water.
Key Features and Specifications
- Adjustable Collar: turn it to set how much chemical the injector pulls, from a light dose up to full draw
- Four Orifice Sizes: 1.5mm, 1.8mm, 2.1mm, and 2.3mm, covering 1.0 to 8 GPM machines
- Brass Body, Stainless Nozzle: machined brass housing with a stainless nozzle and a ceramic check ball
- Downstream Operation: chemical enters after the pump, so pump seals and valves stay clean
- Instant Rinse: switch to a high pressure tip and the draw shuts off
- 1/4" Chemical Barb: takes standard chemical hose and a strainer
| Item Number | Orifice | Machine Flow | Typical Rig |
| 3140 | 1.5 mm | 1.0 to 2.0 GPM | Small electric and light duty machines |

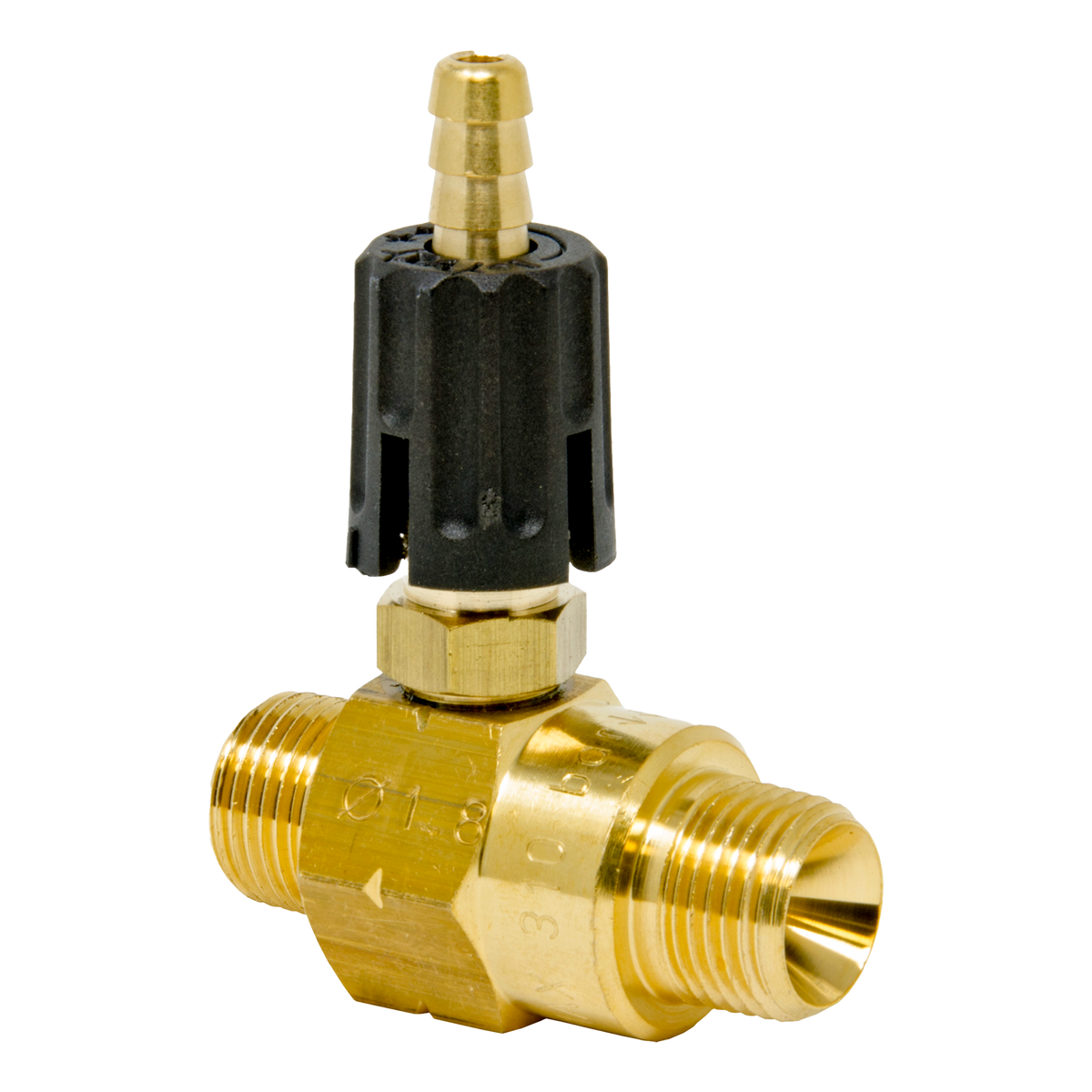

| 2209 | 1.8 mm | 2 to 3 GPM | Smaller gas machines and trailer setups |
| 2210 | 2.1 mm | 3 to 5 GPM | The typical 4 GPM contractor rig |

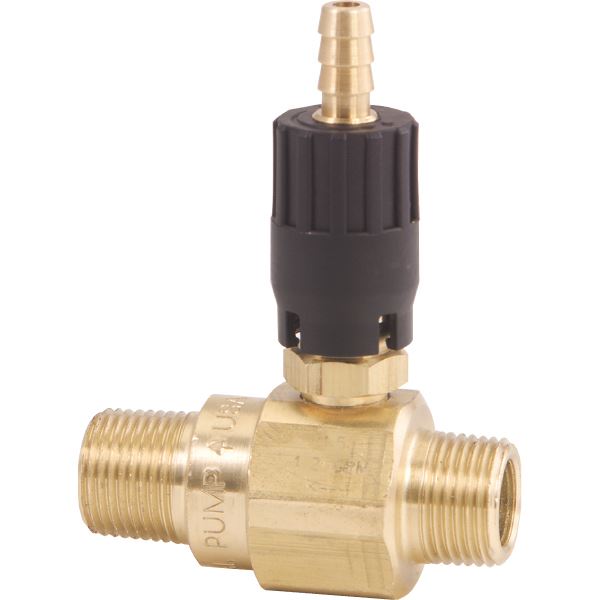

| 2211 | 2.3 mm | 5 to 8 GPM | High flow production and house wash machines |
| Brand | PA |
| Type | Adjustable downstream chemical injector |
| Body | Machined brass |
| Nozzle | Stainless steel |
| Check Ball | Ceramic |
| Chemical Barb | 1/4" |
| Chemicals | Soaps, detergents, degreasers, soft wash mix (not acid) |
Compatibility
The PA adjustable injector fits cold water and hot water pressure washers that use a downstream soap setup. It needs a way to drop pressure at the gun: a low pressure soap nozzle, a dual lance, or an adjustable nozzle. Without one of those it will not draw.
Injectors in this class commonly use 3/8" NPT ports on the inlet and outlet. Check what your current injector threads into before you pull it, and call us if you are not sure. If you are replacing an old injector, match the orifice size stamped on it, or go by your machine's rated GPM.
Applications and Use Cases
- House wash soap on vinyl siding, brick, and stucco
- Soft wash mix where you need to change strength between elevations
- Degreaser application on concrete pads, dumpster areas, and drive-throughs
- Fleet washing where one truck needs more soap than the next
- Small rig setups in the 1.0 to 2.0 GPM range that larger injectors will not draw on
- Replacing a worn injector that has stopped pulling soap
Installation and Maintenance
Plumb the injector downstream of the pump and unloader, with the flow arrow pointing toward the gun. Mount it before the hose reel if you can reach it. Use PTFE tape or pipe sealant on the threads and snug it, but do not crank on brass. Run your chemical line to the barb and clamp it tight so the injector does not suck air.
Put a strainer on the end of the draw hose. Grit from the bottom of a chemical bucket is the fastest way to hang the check ball open, and once it hangs open the injector draws when it should not or backflows water into your bucket.
Flush it with clean water at the end of the day, especially after running sodium hypochlorite. Bleach crystallizes in the passages and around the ball as it dries, and that buildup is what makes draw go weak over a season.
If draw drops off, work the list in order: wrong nozzle on the gun, a clogged strainer, debris on the check ball, a worn o-ring, an air leak at the barb, or a bucket sitting too far below the injector. A long run of hose past the injector also cuts draw. Check the cheap things first before you replace the injector.
Frequently Asked Questions
Which size chemical injector do I need?
Go by your machine's GPM, not its PSI. Use the 1.5mm for 1.0 to 2.0 GPM, the 1.8mm for 2 to 3 GPM, the 2.1mm for 3 to 5 GPM, and the 2.3mm for 5 to 8 GPM. Most 4 GPM contractor machines take the 2.1mm.
What does the adjustment collar do?
It changes how much chemical the injector pulls, so you can run a richer or leaner mix from the same part. It does not change the water flow through the line.
Why is my injector not drawing soap?
Nine times out of ten it is the nozzle. A downstream injector only draws with a low pressure soap tip on the gun. If the soap tip is on and it still will not pull, check the strainer, the check ball, the o-rings, and the barb connection for an air leak.
Can I run acid through this injector?
No. Standard injectors use o-rings that swell and crack in acid. For acid work, use an acid injector with Viton o-rings.
Where can I buy chemical injectors near Gaithersburg, Maryland?
Sun Brite Supply is at 16620 Oakmont Ave, Gaithersburg, MD 20877. We stock PA adjustable injectors, strainers, and chemical hose for walk-in customers and ship nationwide. Call 301-519-9274 if you need help picking the right size.
Before You Order: What to Check
- Your machine's GPM: this picks the orifice size. Check the data plate or the pump label.
- What you are spraying: soaps and soft wash mix, yes. Acid, no.
- Your plumbing: confirm the threads on your current injector before you pull it.
- A soap nozzle: a downstream injector needs a low pressure tip or dual lance to draw.
- Still not sure? Call us before you order. Five minutes on the phone beats a return.
