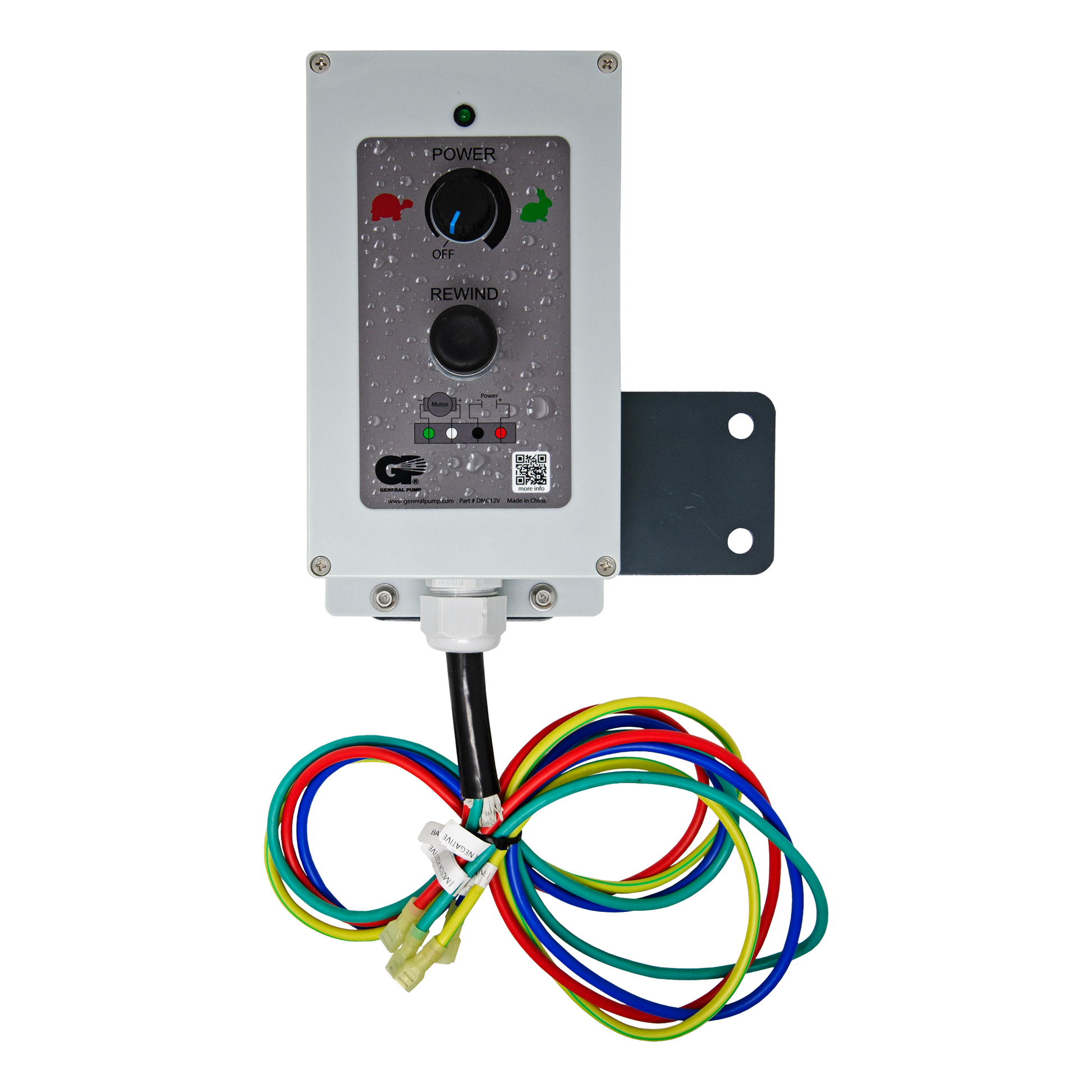

12V Speed Controller for Powered Reel Rewind
A rewind motor with one setting is a blunt instrument. It slams hose onto the drum, stacks it crooked and buries a bad wrap under 200 feet of line. This 12V speed controller is a variable speed rewind control, so you decide how fast the drum turns instead of taking whatever the motor gives you.
Features
- Variable speed control instead of a single wide open rewind
- Runs on 12V power, matching the powered rewind reels most rigs already use
- Lets you creep the drum while you guide hose across the spool by hand
- Slower final wraps mean fewer crossed layers and less hose damage
- Easier on the operator, since you are not chasing a drum that is faster than you are
- Gives newer crew members a way to wind neatly without much practice
- Protects the hose jacket, since a hose that stacks flat is not grinding against a crossed layer
Specifications
| Voltage | 12V |
| Type | Variable speed rewind controller |
| Used With | 12V powered rewind hose reels |
Dialing In the Rewind Speed
Go slow for the first few turns. Those wraps set the base layer against the drum, and if they lay crooked every layer above them will too.
Run mid speed through the middle of the load where the stack is still even, then back off again for the last stretch. The end of the wind is where hose climbs the flange and where a lazy operator creates the tangle that shows up on the next job. Mount the control somewhere you can work it with one hand while the other hand steers the hose, because a control you cannot reach ends up taped wide open.
Common Questions
What does this actually do?
It varies the rewind speed of a powered reel. Rather than on or off, you get control over how quickly the drum pulls hose in.
What power does it need?
12V. Confirm your rewind motor is a 12V unit before you order.
Will it fit any reel?
It is meant for 12V powered rewind reels. If you are unsure what is on your rig, call with the model and we will check it with you.
