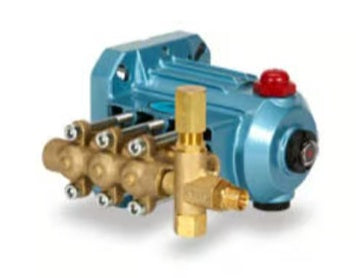

2SF29ELS 2.85GPM 1500PSI 1725RPM 5/8" Shaft Electric

Technical Specifications

Max GPM: 2.85
Stroke: 8.5 mm
RPM: 1725
Max PSI: 1500
Inlet Port: 3/8"
Crankcase Capacity: 10.1 oz
Bore: 18 mm

About This Pump

The Cat 2SF29ELS is a triplex positive displacement, reciprocating plunger pump designed for high-pressure cleaning applications. Built with a brass manifold, 304 stainless steel valve assemblies, and solid ceramic plungers, this pump delivers reliable performance and durability.

Key Features

Hollow shaft design bolts directly to c-face electric motors for seamless integration
Spring-loaded inlet valves ensure smooth, steady flow
Standard NBR (Buna-N) seals and o-rings for dependable operation
Compact dimensions (9.13" × 6.65" × 6.50") for easy portability and installation
Flow rate of 2.85 GPM at 1725 RPM with maximum discharge pressure of 1500 PSI
Stroke length of 0.335"

Note: Oil is not included. Please fill the crankcase before operation.
