Adams Acid Injector QC Kit, Adjustable High Draw
Adams Acid Injector QC Kit, Adjustable High Draw
- Order Policies
- Item# 2178
Couldn't load pickup availability

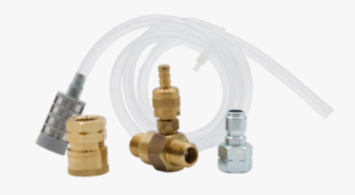

The Adams Acid Injector QC Kit is an adjustable high draw acid injector with quick connect plug inlet and socket outlet, so it drops into your line without cutting plumbing. Viton o-rings, brass body, and up to 20 percent draw in three flow sizes. In stock and ships same day from Sun Brite Supply in Gaithersburg, Maryland.
Product Overview
An acid injector is not just a chemical injector with a different label. The o-rings are Viton instead of Buna-N, and that one change is why it survives hydrofluoric-based brighteners, muriatic dilutions, and rust removers that turn a standard injector into a leaker inside a season.
The other half of the name is the draw. A high draw injector pulls up to about 20 percent chemical, where a standard downstream injector sips at a much lower rate. That matters when you are running thicker acid or a heavy mix and a normal injector barely moves it. The adjustment collar lets you dial the draw up for a heavy application and back it off for a light pass, without pulling the injector out of the line.
It runs downstream, which means it sits after the pump and only draws when pressure drops. Put a soap nozzle on and it pulls; switch to a high pressure tip and it stops. Nothing corrosive ever passes through your pump, unloader, or hose reel. The quick connect ends mean you can pull it off the rig for a fresh water flush in seconds, which is exactly the habit that makes an acid injector last.
Key Features and Specifications
- Viton O-Rings: the reason this is an acid injector and not a soap injector, Viton holds up to acid where Buna-N swells and fails
- Up to 20 Percent Draw: high draw rate for thick acid mixes and heavy applications
- Adjustable Collar: dial the draw rate between jobs instead of swapping injectors
- Brass Body, Stainless Nozzle: machined brass housing with a 303 stainless nozzle and a ceramic check ball
- Downstream Operation: chemical enters after the pump, so acid never touches pump seals or valves
- Quick Connect Kit: plug inlet and socket outlet, so it goes in and out of the line without a wrench
- Three Flow Sizes: orifice sized to your machine, not one size for everything
| Type | Adjustable high draw acid injector, downstream |
| Body | Machined brass |
| Nozzle | 303 stainless steel |
| Check Ball | Ceramic |
| O-Ring | Viton |
| Draw Rate | Up to 20 percent, adjustable |
| Max Pressure | 4500 PSI |
| Max Temperature | 195 F |
| Chemical Barb | 1/4" |
| Item Numbers | 2178 (1.8mm, 2-3 GPM), 2179 (2.1mm, 3-5 GPM), 2180 (2.3mm, 5-8 GPM) |
Match It to Your Flow
Injectors are sized by the flow of the machine, not by what you are spraying. Put a 2-3 GPM injector on an 8 GPM machine and you choke the line and lose pressure. Put an 8 GPM injector on a small machine and it will not draw at all. The orifice size in parentheses on each option is the number that has to match.
| Orifice | Machine Flow | Typical Rig |
| 1.8 mm | 2 to 3 GPM | Smaller contractor and homeowner machines |
| 2.1 mm | 3 to 5 GPM | The typical 4 GPM contractor rig |
| 2.3 mm | 5 to 8 GPM | High flow and production machines |
Applications and Use Cases
- Concrete and masonry brighteners where an acid rinse follows the wash
- Rust and irrigation stain removal on siding, concrete, and brick
- Fleet and aluminum brightening on trailers, tanks, and wheels
- Efflorescence removal on block and stone
- Any job where the chemical would eat a standard Buna-N injector in a few uses
Installation and Maintenance
Plumb it downstream of the pump and the unloader, before the hose reel if you can reach it. Use PTFE tape or pipe sealant on the pipe threads and snug it, but do not crank on brass. Run the chemical line to the barb and clamp it.
Rinse the injector with clean water at the end of every acid job. This is the whole ballgame. Acid left sitting in the check valve overnight is what kills these, not pressure and not hours. Drop the draw hose in a bucket of fresh water, open the collar all the way, and pull a minute of clean water through it before you pack up.
If draw goes weak, work the list in order: orifice too large for your flow, debris on the ceramic ball, a swollen or cracked o-ring, an air leak at the barb, or a chemical bucket sitting too far below the injector. It is almost never the body.
Keep a spare o-ring kit on the rig. Viton o-rings are cheap and a five minute swap on the tailgate beats losing an afternoon.
Frequently Asked Questions
What makes this an acid injector instead of a regular chemical injector?
Viton o-rings. Standard injectors use Buna-N, which swells and cracks when it sits in acid. Viton handles it. The rest of the body is the same brass and stainless you would find on a soap injector.
Can I run soap through an acid injector?
Yes. Viton handles soaps and sodium hypochlorite fine. Plenty of contractors run acid injectors on everything so they never have to think about which one is plumbed in. It costs a little more up front and saves the mistake.
What size do I need?
Size by your machine's GPM, using the table above. If you are between sizes or you run more than one machine, call us at 301-519-9274 with your PSI and GPM and we will size it.
Why is my injector not drawing?
Nine times out of ten it is the nozzle. A downstream injector only draws with a low pressure soap tip on the gun. If the soap tip is on and it still will not pull, check for debris on the check ball, a bad o-ring, or an air leak at the hose barb.
Does the chemical go through my pump?
No. Downstream means it enters the line after the pump. Your pump, unloader, and hose reel only see water. That is the reason to run one at all.
Where can I buy pressure washer chemical injectors near Gaithersburg, Maryland?
Sun Brite Supply is located at 16620 Oakmont Ave, Gaithersburg, MD 20877. We stock acid injectors, soap injectors, strainers, and chemical hose for walk-in customers and ship nationwide. Local contractors in Maryland, Virginia, DC, and the Mid-Atlantic area can stop by for same-day pickup. If you are outside the area, order online at sunbritesupplymd.com and we will ship it out fast. Call us at 301-519-9274 if you need help finding the right part.
Before You Order: What to Check
- Your machine's GPM: this is the number that picks the orifice, not PSI.
- Chemical you are running: if it is acid, you want Viton, and that is what this is.
- Plumbing connections: confirm what your existing injector threads into before you pull it.
- Soap nozzle: a downstream injector is useless without a low pressure tip. Make sure you have one.
- Still not sure? Call us before you order. Five minutes on the phone beats a return.
Why Buy Your Chemical Injectors from Sun Brite Supply?
Sun Brite Supply ships from our warehouse in Gaithersburg, Maryland. We stock the same equipment the pros run, and every part we sell has been vetted by people who work on this gear every day.
Need help picking the right injector? Call us at 301-519-9274. You will talk to someone who actually knows pressure washing equipment, not a script reader at a call center. Our team has over 50 years of combined experience in the pressure washing industry, and we can size the injector to your machine the first time.
Local to Maryland or the DMV area? Stop by our Gaithersburg location at 16620 Oakmont Ave for walk-in counter sales. We can pull parts, check fitment in person, and get you set up on the spot.
We carry over 2,700 pressure washing parts and accessories in stock. Pumps, hoses, fittings, nozzles, chemicals, engine parts, burner parts, and electrical controls. Most orders ship the same business day when placed before 2 PM Eastern.
Shop online at sunbritesupplymd.com or call us directly at 301-519-9274. Over 2,700 parts ready to ship.
Pair it with a chemical strainer, chemical hose, and a low pressure soap nozzle so the whole draw side of your rig is built for acid.
