Double Shut-off Socket 1/2" FPT Steel Zinc Plated
Double Shut-off Socket 1/2" FPT Steel Zinc Plated
- Order Policies
- Item# 4101
Couldn't load pickup availability
Double Shut-Off Socket, Steel Zinc Plated
A double shut-off socket keeps your line from dumping every time you swap a tool. Valves in both halves of the coupling snap closed the moment you disconnect, so the hose stays charged and the fitting stays dry. Reconnect and the valves push open, and flow picks right back up.
This one is machined from steel with a zinc plated finish, so it holds up to hot water and wash-bay chemicals better than a raw steel fitting. Pick 1/2" FPT for main hose runs and manifolds, or 3/8" FPT for wands, guns, and shorter whips.
Key Features
- Double Shut-Off Design: both sides seal on disconnect, so you get no drips, no spray, and no lost prime
- Zinc Plated Steel: machined body with a plated finish that resists rust in wet bays
- Two Thread Sizes: 1/2" FPT and 3/8" FPT, both female pipe thread
- Rated to 4500 PSI: 4000 PSI on the 1/2", 4500 PSI on the 3/8"
- 300 F Max Temp: safe on hot water units, not just cold water rigs
- Made in USA: per the manufacturer
- Multi-Station Friendly: ideal for shops running several wash points off one supply
Specs
| Type | Double shut-off socket (female coupler half) |
| Thread | 1/2" FPT or 3/8" FPT |
| Material | Steel, zinc plated |
| Max Pressure, 1/2" | 4000 PSI |
| Max Pressure, 3/8" | 4500 PSI |
| Max Temperature | 300 F |
| Origin | Made in USA |
| Item Numbers | 4101 (1/2"), 4098 (3/8") |
Thread it on with PTFE tape or pipe sealant and check the seat for grit before every connect. Grit in the valve is the number one reason a shut-off coupler starts to weep.

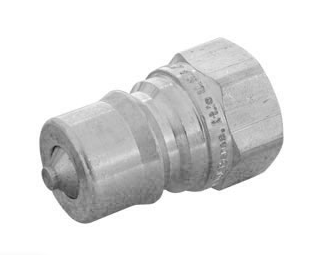

Pair it with a matching double shut-off plug and a length of pressure hose so both ends of the connection seal the same way.
