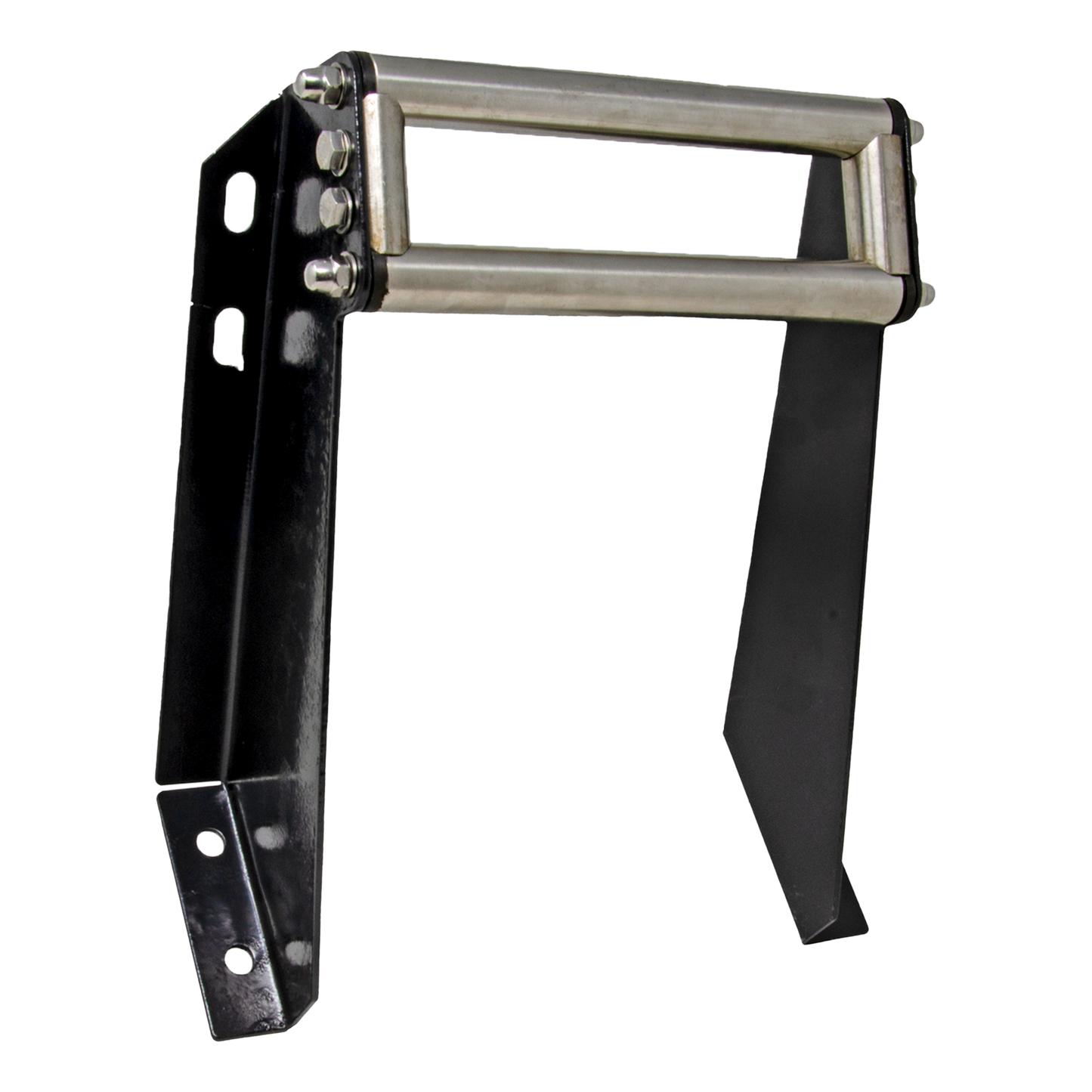

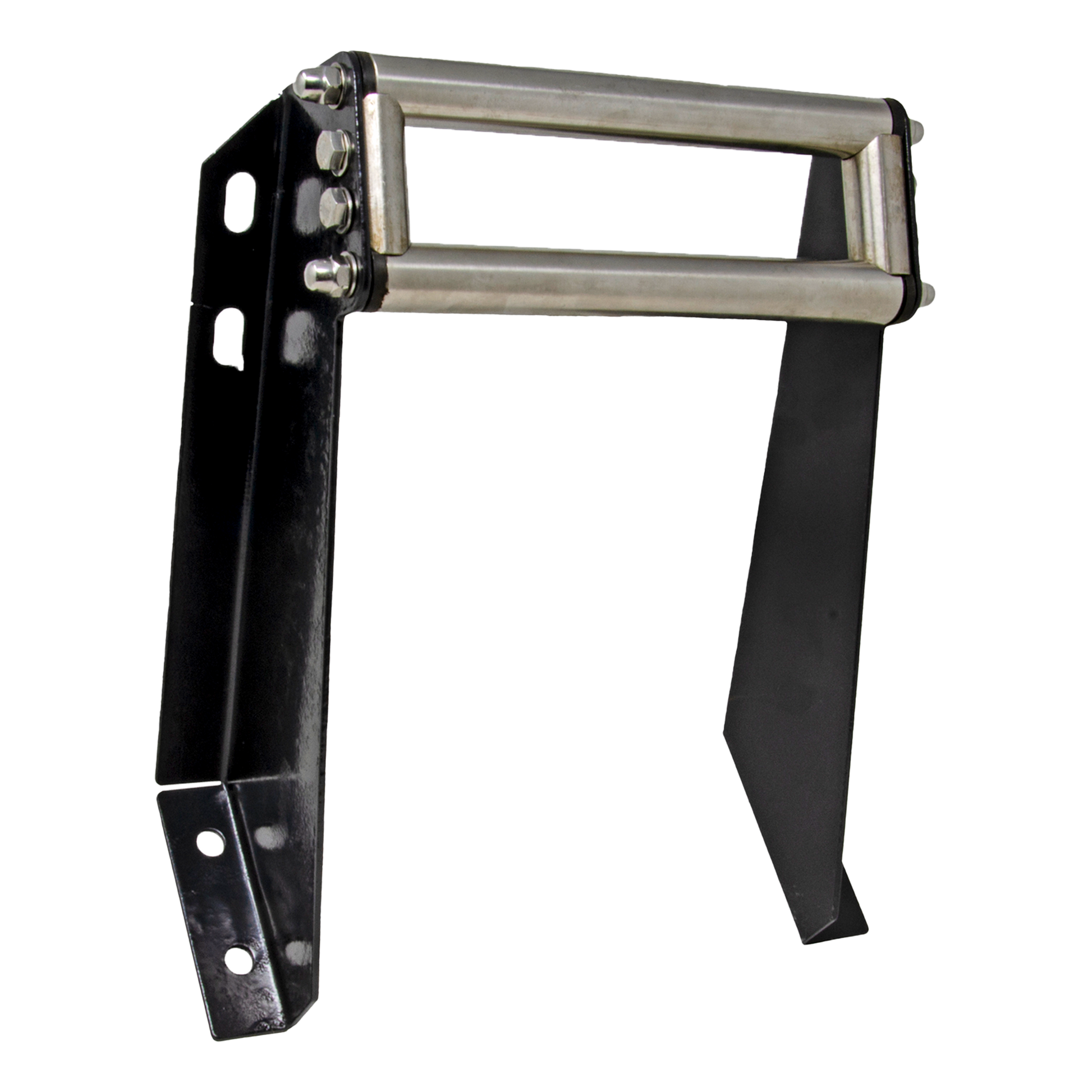

Hose Reel Guide for 300' A-Frame Reels (2100463)

Hose Reel Guide 2100463 for 300 ft A-Frame Reels

Model 2100463 is the hose reel guide built for a 300 ft A-frame reel. The longer the run, the more a bad wind costs you, and at three hundred feet an uneven stack turns into a jam before the drum is full. This guide walks the line across the spool so the layers build evenly from flange to flange. Fleet trucks and commercial crews running long pulls are who this size is for.

Features

• Model 2100463, sized to the 300 ft drum
• Lays each layer evenly from one flange to the other
• Made for A-frame style reels
• Stops the mid rewind jam that long loads are famous for
• Keeps deep wraps from crushing the layer underneath
• One less thing for the operator to babysit at pack out

Specifications

Installing and Aligning It

Center the assembly on the drum before you tighten anything down. If the rollers sit off to one side, the hose gets shoved toward a flange every single wrap and you have built the exact problem you were trying to solve. Sight down the reel from the front and make sure the path from roller to spool runs straight with no lean.

Then set your habits to match. With three hundred feet coming in, the last fifty is where a sloppy wind shows itself as a bind. Feed the line under light steady tension and rewind at a pace someone can walk, not a pace that whips hose off the ground. Pull a wrench over the mounting hardware a few times a season, since a long load puts steady side load on the assembly and hardware backs out over time.

Common Questions

What drum size does this fit?

A 300 ft A-frame reel.

Which model number is it?

2100463.

Why does even winding matter more on a long reel?

More layers on the spool means more weight pressing down, so a crooked wrap gets crushed by everything wound on top of it.
