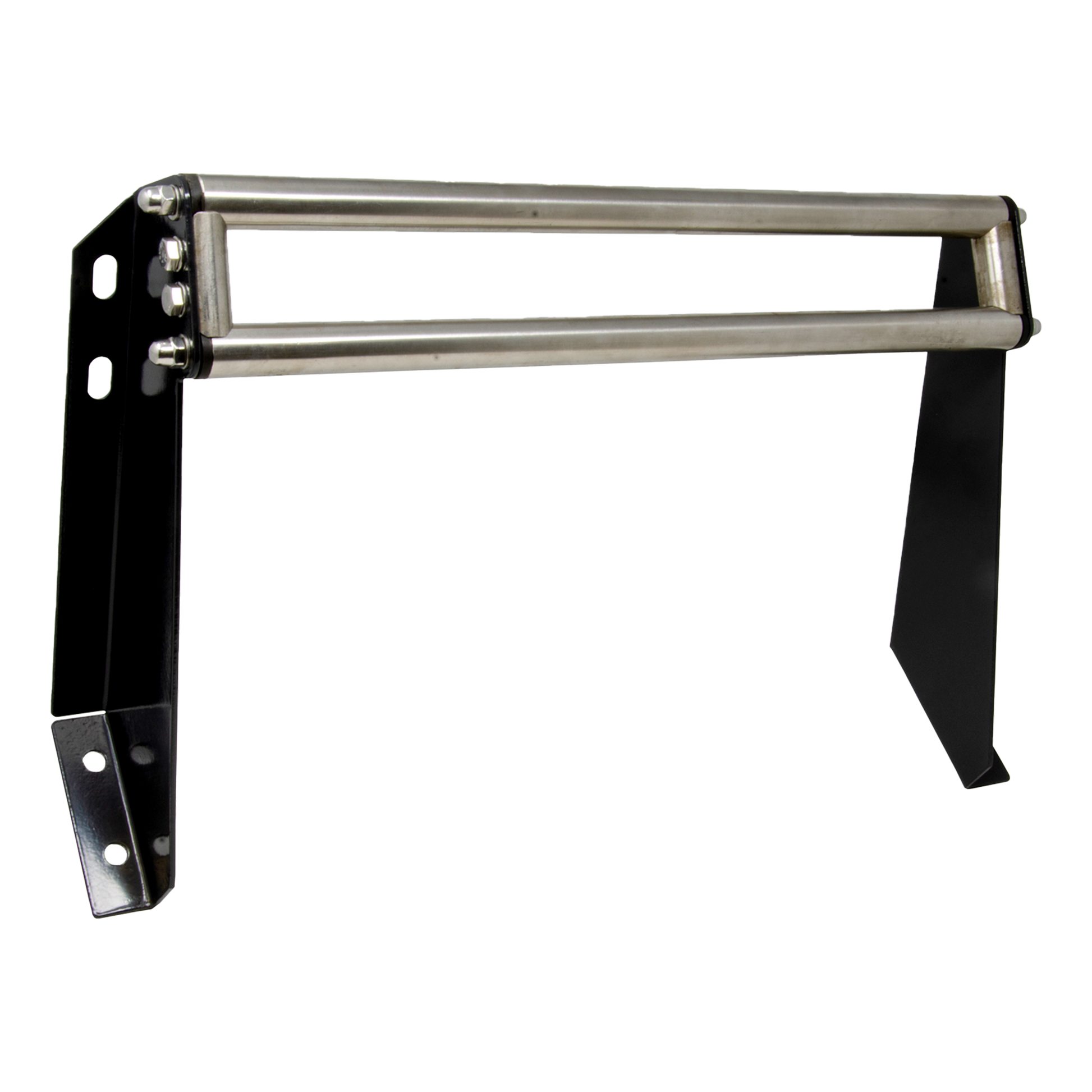

Hose Reel Guide for 450' A-Frame Reels (2100503)

Hose Reel Guide 2100503 for 450 ft A-Frame Reels

Model 2100503 is the hose reel guide for the 450 ft A-frame reel, which is the largest of the three sizes. At four hundred and fifty feet a spool that stacks crooked will bind long before you finish reeling in, and a bound reel with a crew waiting is a bad way to end a shift. This guide feeds the line across the drum so every wrap seats next to its neighbor. Industrial accounts and long distance work are where this capacity shows up.

Features

• Model 2100503, matched to the 450 ft capacity drum
• Handles the heaviest hose load of the A-frame lineup
• Seats every wrap next to its neighbor across the spool
• Fits A-frame reel frames
• Reduces the crushed wrap damage a deep spool causes

Specifications

Wear Checks on a Full Size Drum

A full four hundred and fifty foot load is heavy, and all that weight leans on the guide assembly every time the drum turns. Give the roller hardware a look at the same time you grease the rest of the machine. Spin each roller by hand. Anything that hesitates, rattles or shows a flat worn into it should come off before it starts chewing the hose cover.

Watch how the hose behaves as it comes in, too. If the line starts climbing toward one side, stop and back it off a few wraps rather than forcing it under power. A crushed wrap buried under a full spool is what ruins good hose, and you will not see the damage until you pay the whole reel out. Wind at a walking pace with light tension and the guide will handle the rest.

Common Questions

What capacity reel is this for?

The 450 ft A-frame reel.

What model is it?

2100503.

Can I use the smaller version instead?

No. Each guide is cut for one drum, so a shorter reel version will not line up on this frame.
