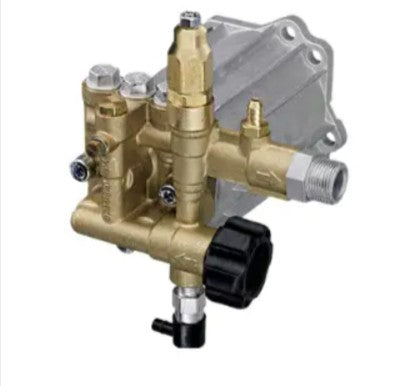

AR RMV2.5G30D Pump Made Ready - 2.5 GPM, 3000 PSI, 3/4" Gas Flange

The AR RMV2.5G30D Pump Made Ready is a complete, bolt-on axial radial pump kit rated 2.5 GPM at 3,000 PSI — 7,500 cleaning units — with a brass manifold, ceramic pistons, thermal relief, and a fixed 12% chemical injector already installed. In stock and shipping same day from Sun Brite Supply in Gaithersburg, Maryland.

Product Overview

This is the direct-drive replacement pump for 5–7 HP gas pressure washers. It arrives assembled and ready to mount — you are not sourcing an injector, a thermal relief valve, a garden hose adapter, or an inlet screen separately. Bolt it to the engine, connect the chemical line, and run.

The 3/4" hollow F7 shaft slips straight onto a standard SAE J609a small-engine crankshaft, so this drops onto the machines contractors actually own: Predator 212cc and 224cc, Honda GX200, Briggs XR950, Kohler CH270. No coupler, no adapter plate, no pulley.

At 3,000 PSI the brass manifold is the right material call. Brass holds dimensional stability through pressure cycling, resists the corrosion that eats aluminum heads on well water and coastal jobs, and sheds heat during bypass. Ceramic pistons ride against the seals instead of grinding them. Aluminum connecting rods keep the crankcase light.

Most important: this pump is built to be rebuilt. Seals, check valves, unloader internals, and the injector are all stocked as individual service kits. When it eventually wears, you rebuild it for a fraction of a replacement pump instead of throwing the whole unit away. Browse AR Pumps and Parts for the matching kits.

What Comes in the Kit

• RMV2.5G30D axial radial pump — brass manifold, ceramic pistons, aluminum connecting rods, 3/4" hollow keyway F7 shaft, factory assembled.
• Fixed 12% chemical injector — integrated downstream injector. Drop the filter in your soap jug and it draws automatically at the correct ratio. Nothing to plumb.
• Chemical tube and inlet filter — complete detergent pickup assembly.
• Swivel garden hose adapter — easy-grip swivel body, hand-tight hookup, no twisting the inlet port.
• Stainless steel inlet screen — keeps sediment out of the manifold, pistons, and injector. The cheapest insurance on the pump.
• Thermal relief valve — dumps hot water during extended bypass and pulls in cool supply water, then resets itself. Prevents the single most common cause of seal failure.
• Low-profile hex Allen fasteners with lock washers — vibration-resistant engine-to-pump mounting hardware.
• Operations manual with parts schematic — every serviceable component with its part number for rebuild time.

Key Specifications

Reading the Model Number

Engine Compatibility

Any 3/4" keyway shaft engine on an F7 SAE J609a bolt pattern producing at least 5.1 EBHP:

• Predator 224cc / 6.6 HP — the best pairing. More torque than the 212cc means real overhead for sustained 3,000 PSI work.
• Predator 212cc / 6.5 HP — comfortably above the minimum. Fine for residential and contractor builds.
• Honda GX200 / 5.5 HP — 196cc, above the minimum but with less margin. Good for residential duty cycles.
• Briggs & Stratton XR950 — compatible for residential and light contractor use.
• Kohler CH270 / Command series — compatible on applicable small-frame configurations.

Building a machine from scratch instead of repowering one? Look at our Cold Water Pressure Washers before you buy parts.

What This Pump Is Used For

• Driveways, siding, decks, patios, fences, fleet washing — 7,500 cleaning units with built-in soap delivery covers the full residential job list.
• Contractor pump replacement — direct bolt-on for a worn 3,000 PSI pump on an existing 5–7 HP machine. Complete kit means no parts run mid-job.
• Farm and equipment rinse-down — brass manifold and stainless inlet screen hold up to well water and grit.
• Facilities and municipal fleets — standardize on one rebuildable pump across multiple machines and stock one set of service kits.

Installation and Maintenance Tips

Check the engine shaft before you mount anything. A scored or burred crankshaft will bind in the hollow shaft and you will never get the pump back off. Clean it, deburr it, and apply anti-seize to the shaft before assembly — this is the step people skip and regret two seasons later.

Torque the mounting bolts evenly in a cross pattern. Install the stainless inlet screen; running without it voids the point of having it. Never run the pump dry — prime it with water flowing and the trigger open before you start the engine.

Change the pump oil after the first 50 hours, then every 200 to 300 hours or once a season. Use non-detergent pump oil, never motor oil. Flush the chemical line with clean water after every soap application or the injector check ball will stick.

Do not let the machine sit in bypass. Even with thermal relief working correctly, extended bypass cooks seals. Trigger off, engine to idle, or shut it down.

Frequently Asked Questions

Will this pump fit my engine?

If your engine has a 3/4" keyway crankshaft on the standard F7 SAE J609a flange and makes at least 5.1 EBHP, yes. That covers the Predator 212cc and 224cc, Honda GX160/GX200, Briggs XR950, and Kohler CH270. Measure the shaft if you are unsure, or call us at 301-519-9274 with the engine model.

Do I need a separate chemical injector?

No. The fixed 12% injector is built into this kit. If you want adjustable draw or a different ratio, see our Chemical Injectors.

What is thermal relief and do I actually need it?

When you hold the trigger closed, water recirculates inside the pump and heats up fast. Thermal relief dumps that hot water and pulls in cool supply water automatically, then closes again. Without it, hot water destroys seals. It is included on this pump.

Should I rebuild this pump or replace it?

Rebuild it. Seal kits, check valve kits, and injector parts cost a fraction of a new pump, and the crankcase and manifold last for years. Only replace the pump if the manifold or crankcase is cracked.

What nozzles should I run with 2.5 GPM at 3,000 PSI?

Nozzle orifice has to match flow and pressure or you lose performance and risk damaging surfaces. Shop Pressure Washer Nozzles, 1/4" MEG Nozzles, and Soap & Foam Tips, or call us and we will size it for you.

Where can I buy AR pressure washer pumps near Gaithersburg, Maryland?

Sun Brite Supply is at 16620 Oakmont Ave, Gaithersburg, MD 20877, open Monday through Friday, 7:30 AM to 4:00 PM. Contractors in Maryland, Virginia, DC, and the Mid-Atlantic can pick up same day at the counter. Everyone else orders at sunbritesupplymd.com and we ship nationwide.

Before You Order: What to Check

• Shaft size and type — must be 3/4" hollow with a keyway on an F7 flange. A 1" shaft or a solid-shaft engine will not work.
• Engine horsepower — 5.1 EBHP minimum. Under-powering a pump stalls it under load and burns the engine.
• Your machine's rating — if the existing pump was 2.0 GPM, moving to 2.5 GPM changes your nozzle sizing. Order the correct tips at the same time.
• Hose and outlet threads — the outlet is 22 mm. Check what your hose and quick connects use. See Quick Connects and Hose Fittings.
• Not sure? Call 301-519-9274. Five minutes on the phone beats a return.

Why Buy This Pump from Sun Brite Supply

We ship from our own warehouse in Gaithersburg, Maryland. We stock the brands the pros run — AR, General Pump, Cat Pumps, Comet, Giant, Honda — and we stock the rebuild kits to go with them, so the pump you buy today is still serviceable in five years.

Call 301-519-9274 and you talk to someone who works on this equipment, not a script reader. Our team has over 50 years of combined experience in the pressure washing industry. We verify fitment before you order, not after the wrong part shows up.

Over 2,700 pressure washing parts and accessories in stock: pumps, hoses, fittings, nozzles, chemicals, engine parts, burner parts, and electrical controls. One order, one shipment, less downtime. Most orders ship the same business day when placed before 2 PM Eastern.
