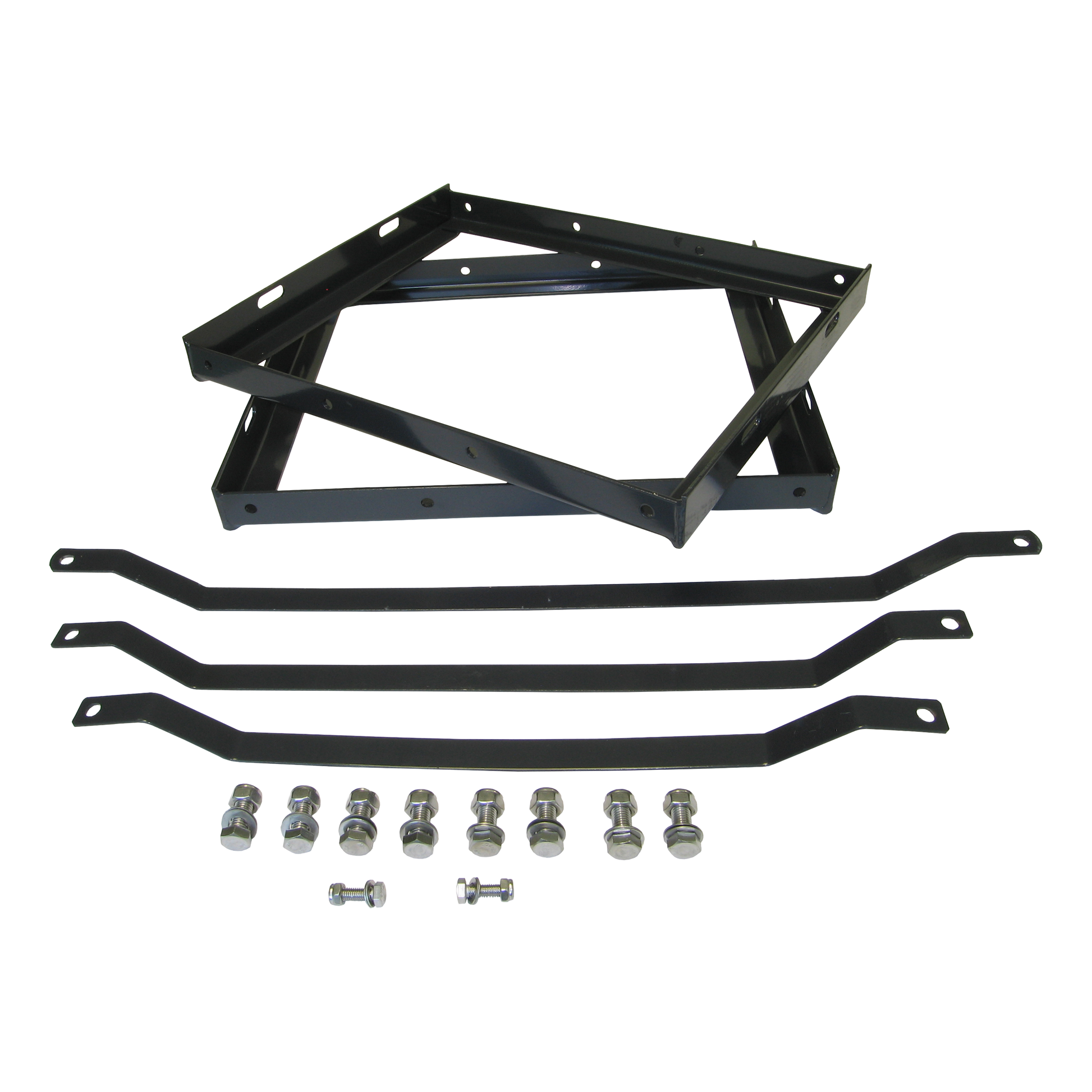

Stacking Kit for 150, 300 and 450 Foot A-Frame Reels
Deck space runs out long before the work does. This stacking kit lets you set one A-frame reel above another instead of parking them side by side, and it fits the 150 foot, 300 foot and 450 foot A-frame reels. That means you can carry a wash line and a rinse line on a rig that only had room for one drum.
Features
- Holds a second A-frame reel above the first one
- Fits the 150 foot, 300 foot and 450 foot A-frame reels
- Lets you mix capacities on the same rig, such as a short chemical line over a long rinse line
- Frees up trailer floor or truck bed room for a buffer tank, ladders or a surface cleaner
- 21 pound listed weight, so one person can set it in place
- Keeps both hoses off the deck where they get stepped on and cut
Specifications
| Type | Stacking rack |
| Function | Mounts one A-frame reel above another |
| Fits | 150 ft, 300 ft and 450 ft A-frame hose reels |
| Listed Weight | 21 lb |
Planning the Stack Before You Drill
Decide which hose you reach for first, because that drum belongs on the bottom where it is easy to grab and easy to load. The backup line or the specialty line goes up top. If one reel is noticeably heavier, put the heavy one low.
Stacking raises the center of gravity of everything on that deck, and on a trailer you feel that as sway at highway speed. Anchor the bottom reel through real structure instead of thin decking, then leave enough headroom above the upper drum that hose can pay out without rubbing a rail. Re-check the fasteners after the first week of driving, since vibration finds anything that was not fully seated.
Common Questions
Which reels does it work with?
The 150 foot, 300 foot and 450 foot A-frame reels. You do not have to run matching capacities on the two levels.
Do reels come with it?
No. This listing covers the rack only, and the reels are ordered separately.
Can I still run the bottom reel normally?
Yes. The lower drum keeps its own mounting position, so it pulls and winds the same way it did before you added the rack.
