X-Jet M5 Adjustable Chemical Injection Nozzle
X-Jet M5 Adjustable Chemical Injection Nozzle
- Order Policies
- Item# 91407
Couldn't load pickup availability
X-Jet M5 adjustable external injection nozzle kit. All six sizes in stock and ship same day from Sun Brite Supply in Gaithersburg, Maryland.
Product Overview
The X-Jet M5 injects and proportions cleaning solutions externally, so the chemical never goes through your pump, hose, spray gun, or fittings. Twist the adjustable head from a 0 degree stream to a 60 degree fan and reach up to 40 feet high depending on your machine. Apply strong mixes like roof wash without eating injectors, hoses, and pump seals.

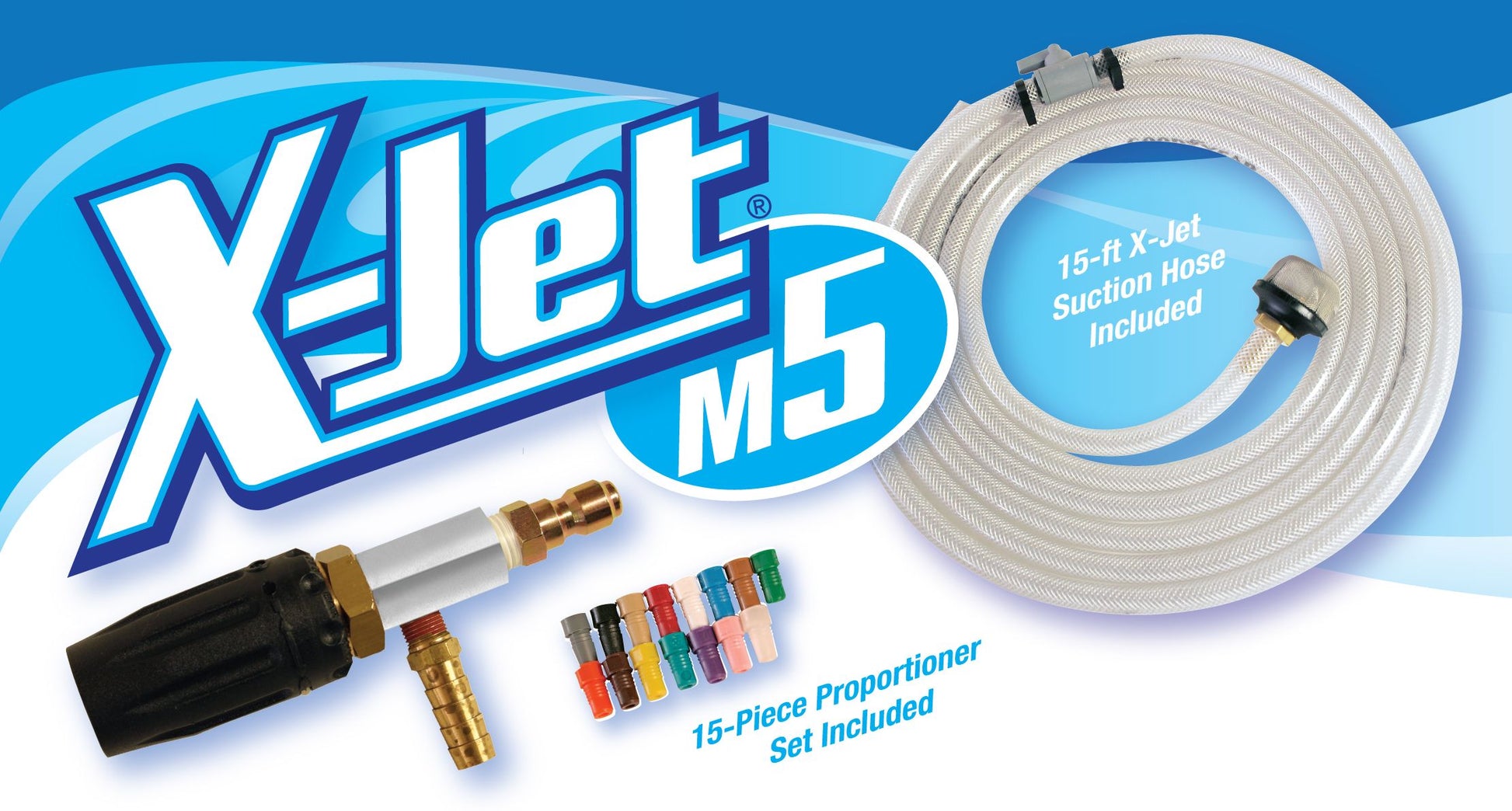

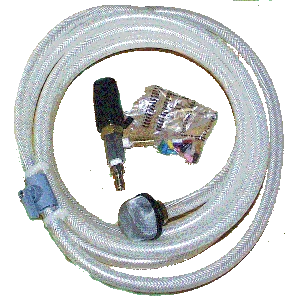

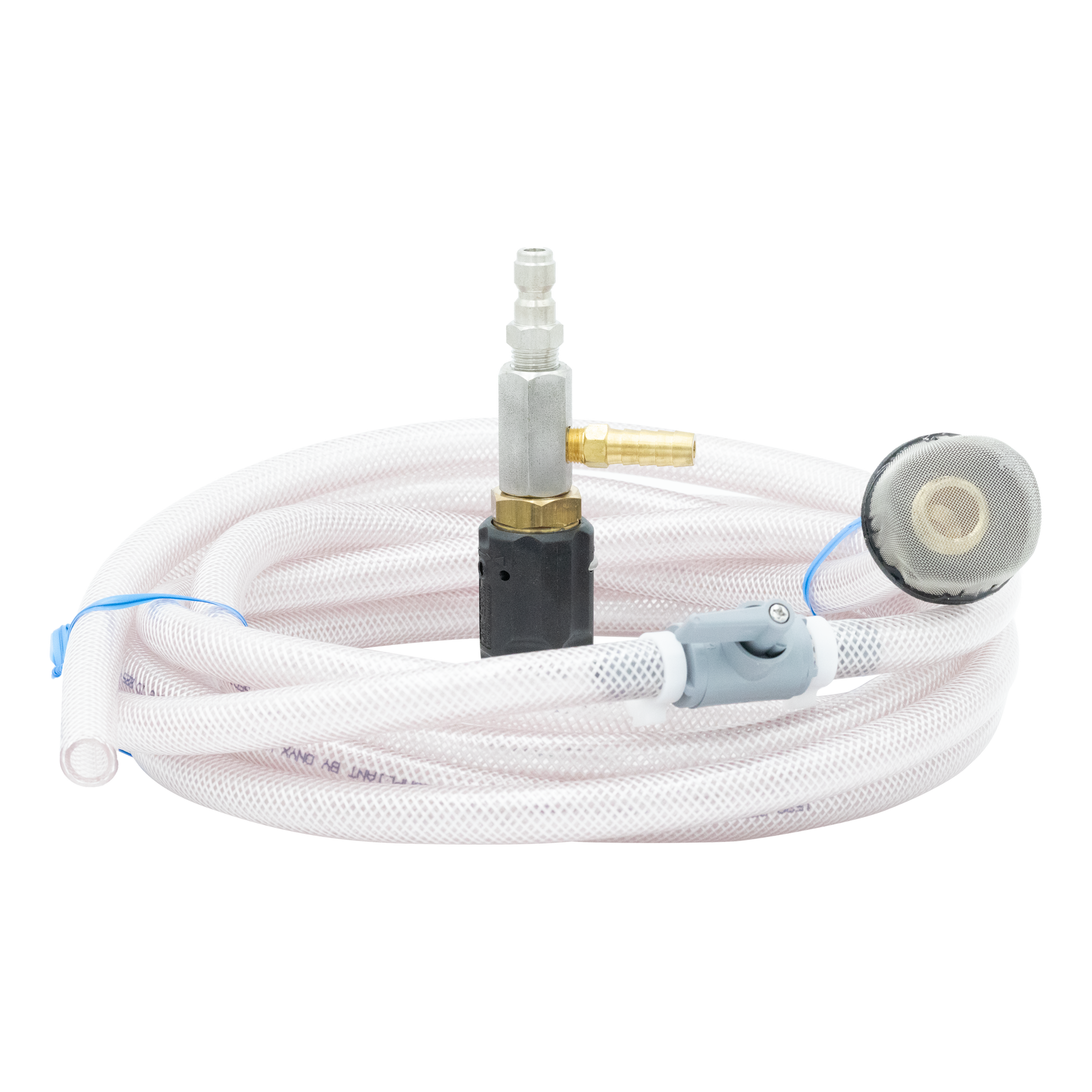

What Comes in the Kit
- M5 adjustable injection nozzle (sized to your machine)

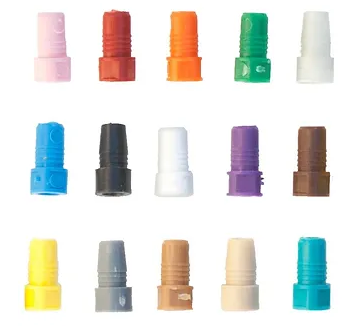

- Color-coded proportioner set with reference card
- 15 ft hose assembly with spring filter
- Inline shutoff valve
- Tank screen strainer
Specifications
| Max Pressure | 4000 PSI (2500 to 4000 PSI optimal) |
| Max Flow | 8.0 GPM (7.0 to 8.0 GPM optimal) |
| Max Temperature | 190 F |
| Spray Pattern | 0 to 60 degrees, twist adjustable |
| Inlet | 1/4" quick connect plug |
| Chemical Port | 1/8" MPT x 3/8" hose barb |
| Draw Hose | 15 ft with inline shutoff valve |
| Vertical Reach | Up to 40 ft depending on machine flow |
| Kit Weight | About 4 lbs |
Which Size Fits Your Pressure Washer?
Match the nozzle number to your pump specs:
| Nozzle # | GPM | PSI |
| #7 | 1-2.8 | 800-4,000 |
| #9 | 3-3.5 | 1,000-4,500 |
| #13 | 4-4.5 | 1,000-4,500 |
| #16 | 5-6.5 | 2,000-4,500 |
| #20 | 7-8 | 2,800-5,000 |
| #25 | 8.5+ | 2,500-5,000 |
Not sure? Call 301-519-9274 with your machine's PSI and GPM and we will size it for you.
Frequently Asked Questions
What is the difference between the M5 and the Original X-Jet?
The M5 has an adjustable spray head (0-60 degrees with a twist). The Original has fixed long-range and close-range nozzles and sprays 3-5 feet higher. Most contractors today run the M5 for the adjustability.
Can I switch the M5 between machines?
Yes. Swap the interchangeable orifice to match a different GPM machine. We stock replacement orifices #7 through #25.
Can I rinse with the same nozzle?
Yes. Lift the draw hose out of the bucket or close the inline ball valve and you are rinsing with plain water in about a second. That is the main advantage over a downstream injector, which has to clear soap out of the hose first.
