Pressure Washer Pump - General Pump EZ4040G 4 GPM 4000 PSI Triplex Replacement Pump
Pressure Washer Pump - General Pump EZ4040G 4 GPM 4000 PSI Triplex Replacement Pump
- Order Policies
- Item# 6076
Couldn't load pickup availability

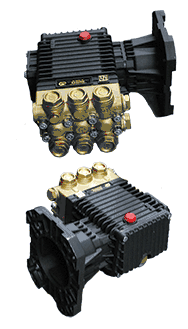

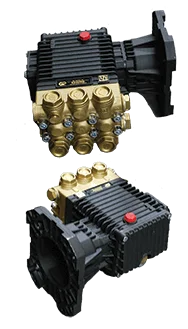

General Pump EZ4040G triplex plunger pump rated at 4 GPM and 4,000 PSI. This is the replacement pressure washer pump that fits most contractor-grade cold water machines with a Honda GX390 or similar 1" gas flange shaft engine. Hollow shaft design slides directly onto your engine shaft with no adapter needed. Three ceramic plungers, brass manifold, and forged brass valve caps built for years of commercial use.
When your pump fails after 1,000 to 2,000 hours of use, this is usually what goes back on. The EZ4040G is one of the most widely used contractor pumps in the pressure washing industry. Parts are readily available, rebuild kits are affordable, and any pump tech who works on pressure washers knows this pump inside and out.
Why Contractors Choose the General Pump EZ4040G
The EZ series earned its name because it is genuinely easy to work on. The valve caps, plungers, seals, and o-rings are all accessible without pulling the pump off the machine. When a seal blows on a job site, you can replace it in 15 to 20 minutes with basic hand tools and a rebuild kit. Try that with a cheaper pump and you will spend the rest of the day in the shop.
At 4 GPM and 4,000 PSI, this pump matches the most common contractor rig configuration: a Honda GX390 engine on a skid or trailer frame. That flow and pressure combination handles house washing, concrete cleaning, fleet washing, and commercial jobs without being underpowered.
Replacement Pressure Washer Pump Specifications
| Spec | Detail |
|---|---|
| Brand | General Pump |
| Model | EZ4040G |
| Pump Type | Triplex Plunger |
| Max Flow | 4.0 GPM |
| Max Pressure | 4,000 PSI |
| RPM | 3,400 |
| Shaft Type | 1" Gas Flange (SAE J609 Hollow Shaft) |
| Plunger Material | Ceramic |
| Manifold Material | Brass |
| Inlet Size | 1/2" NPT |
| Outlet Size | 3/8" NPT |
| Oil Capacity | ~20 oz |
| Weight | ~28 lbs |
How to Know When Your Pressure Washer Pump Needs Replacing
Pumps do not die all at once. They give you warning signs over weeks or months. Here is what to watch for:
Low pressure that does not respond to adjusting the unloader. If you have already checked your nozzles, cleaned the inlet filter, and adjusted the unloader valve, and you still cannot get full pressure, the pump internals are worn. Seals, plungers, or valves are letting water bypass instead of building pressure.
Milky or foamy oil in the crankcase. Pull the oil fill cap and check the oil. If it looks milky white or has foam in it, water is getting past the pump seals into the crankcase. You can try replacing the seals first, but if it keeps happening, the plunger surfaces are scored and the pump needs replacing.
Loud knocking or hammering sounds. A healthy triplex pump has a steady, smooth rhythm. If you hear knocking, banging, or irregular hammering, something inside has broken or come loose. Shut the machine down and inspect before running it any further.
Water leaking from the pump body or weep holes. Small weep holes at the bottom of the pump are designed to let you know when seals are failing. If water is dripping from those holes, the high-pressure seals need replacement. If it keeps leaking after a seal change, the brass manifold or plunger bores may be scored.
Triplex vs Axial Pump - What Is the Difference?
| Feature | Triplex Plunger Pump (like the EZ4040G) | Axial Cam Pump |
|---|---|---|
| Lifespan | 1,000 to 2,000+ hours with maintenance | 200 to 500 hours typical |
| Rebuildable | Yes, seals and valves are replaceable | Usually not worth rebuilding |
| Max PSI | Up to 5,000+ PSI | Usually under 3,200 PSI |
| Max GPM | Up to 10+ GPM | Usually under 3 GPM |
| Price | $300 to $800+ | $80 to $200 |
| Best For | Professional/commercial daily use | Residential/occasional use |
If you are running a pressure washing business, a triplex pump is not optional. Axial pumps are fine for homeowners who wash their deck twice a year. Contractors need a pump that can run 6 to 8 hours a day, 5 days a week, and be rebuilt when it finally wears out instead of thrown away.
How to Match a Replacement Pump to Your Engine
Three things need to match: shaft size, shaft type, and RPM.
Shaft size and type. The EZ4040G uses a 1" gas flange (SAE J609) hollow shaft. This is the standard for Honda GX340, GX390, and similar 11-13 HP engines. If your engine has a different shaft size or type (like a solid shaft or electric motor flange), you need a different pump model.
RPM. This pump runs at 3,400 RPM, which matches direct-drive applications on gas engines. If you are running a belt-drive setup at 1,450 or 1,750 RPM, you need a solid shaft pump designed for that speed.
Not sure what you need? Call us at (301) 519-9274 with your engine model number and we will match the right pump to your machine. We do this every day.
Pump Maintenance Tips to Maximize Life
Change the oil every 50 hours or monthly. Pump oil breaks down from heat and pressure cycling. Fresh oil is cheap insurance against premature bearing and crankshaft failure.
Never run the pump dry. Even 30 seconds of running without water flowing through the pump can score the plungers and destroy the seals. Always have water flowing before you start the engine.
Use an inlet filter. Sand, grit, and debris from the water supply destroy check valves and score plunger surfaces. A $5 inlet filter saves you hundreds in pump repairs.
Winterize before storage. If temperatures drop below freezing, flush the pump with pump antifreeze or RV antifreeze. Water left inside will freeze, expand, and crack the manifold.
Frequently Asked Questions About Pressure Washer Pumps
How long does a pressure washer pump last?
A quality triplex pump like the EZ4040G typically lasts 1,000 to 2,000 hours with proper maintenance. That is roughly 2 to 4 years of full-time contractor use. With regular oil changes, clean inlet water, and timely seal replacements, some contractors push 3,000+ hours before a full rebuild.
Can I put a bigger pump on my pressure washer?
You can increase GPM or PSI within the limits of your engine's horsepower. A general rule: you need about 1 HP per 1 GPM at 1,000 PSI. A 13 HP engine can comfortably run a 4 GPM / 4,000 PSI pump. Going beyond that formula overloads the engine and shortens the life of everything.
What oil goes in a pressure washer pump?
Most triplex pumps use non-detergent 30W pump oil or a manufacturer-specified pump oil. Do not use motor oil. Motor oil has detergents that can break down pump seals. Check your pump manual for the exact oil spec.
Is it worth rebuilding a pressure washer pump or should I replace it?
If only the seals and valves are worn, a rebuild kit costs $80 to $200 and gives you another 500 to 1,000 hours. If the plungers are scored, the manifold is cracked, or the crankcase is damaged, replacement is the better investment. A full rebuild on a severely worn pump often costs more than a new pump once you add up all the parts.
What does the orifice size on my pump mean?
Pumps do not have orifice sizes. The orifice size is on your nozzle tips. Your pump's specs are GPM (gallons per minute) and PSI (pounds per square inch). These two numbers together determine which nozzle tips you need.
